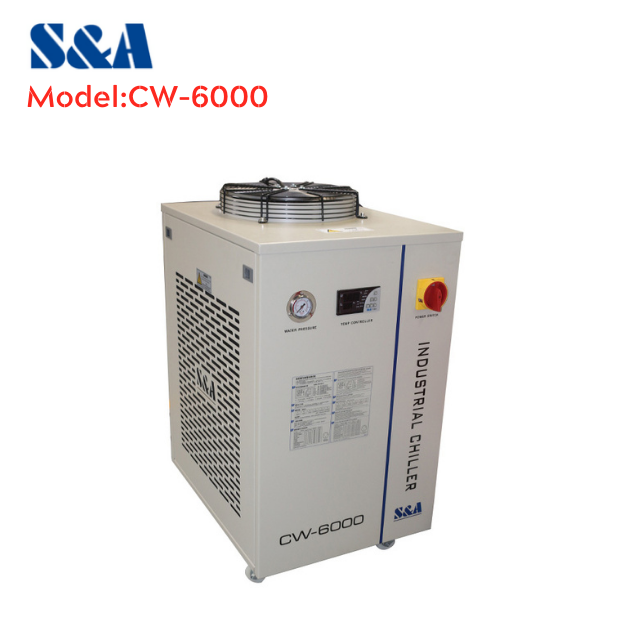

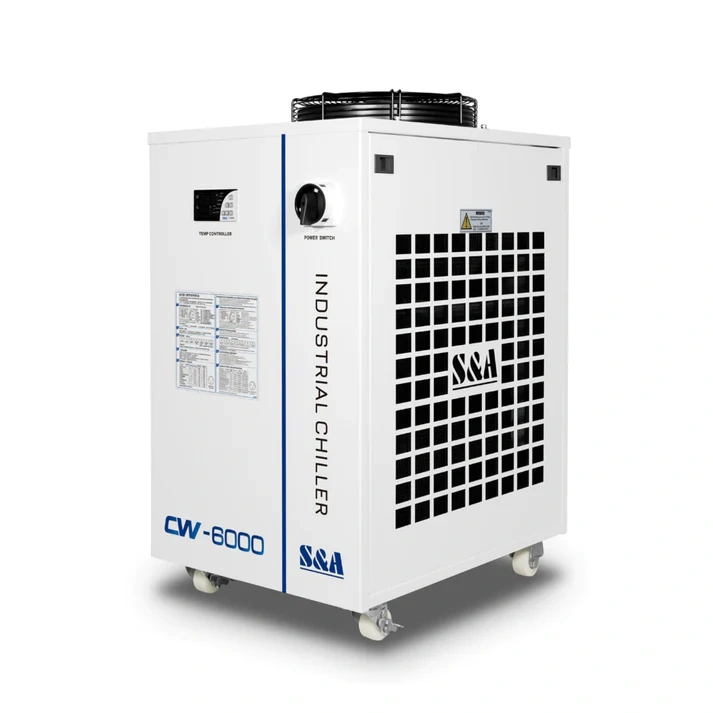

The S&A CW-6000 industrial water chiller is popular for its two temperature control modes - constant temperature and intelligent temperature control. It fits to cool UV printers and laser-cutting machines. Refrigerant charge up to 650-800g.The 15L water tank runs at a max of 70L/min to remove heat from the CO2 laser tube. With a cooling capacity of up to 3.15 kW and temperature error within 0.5°C, CW-6000 can easily cool down up to 300W CO2 laser tube.
CW-6002: Dual inlet and outlet series (option); heating device (option); filter(option)
This water chiller has been awarded a design patent certificate, as well as CE, FDA, and RoHS certifications.
Suggestion:
Intelligent temperature control mode for summer
Constant temperature control mode for winter
Features
1. 3000W cooling capacity; optional environmental refrigerant;
2. ±0.5℃ precisely temperature control;
3. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
5. Multiple power specifications; CE approval; RoHS approval; REACH approval;
6. Optional heater and water filter
【Powerful Cooling】 Genuine S&A CW-6000 water chiller uses standard R410a refrigerant with 650-800g charged to keeps the laser tube up to 300Wabove well and cool during use; Its 13L/min- 70L/min flow rate and1.06-1.12KW compressor cools up to 10611-10731Btu/h.
【Large Capacity Water Tank】3.96 gallon (11L) water tank features closed design to reduce water evaporation and provide long service between fills; Precision scale shows water level; Easy to observe and know when water filling is needed.

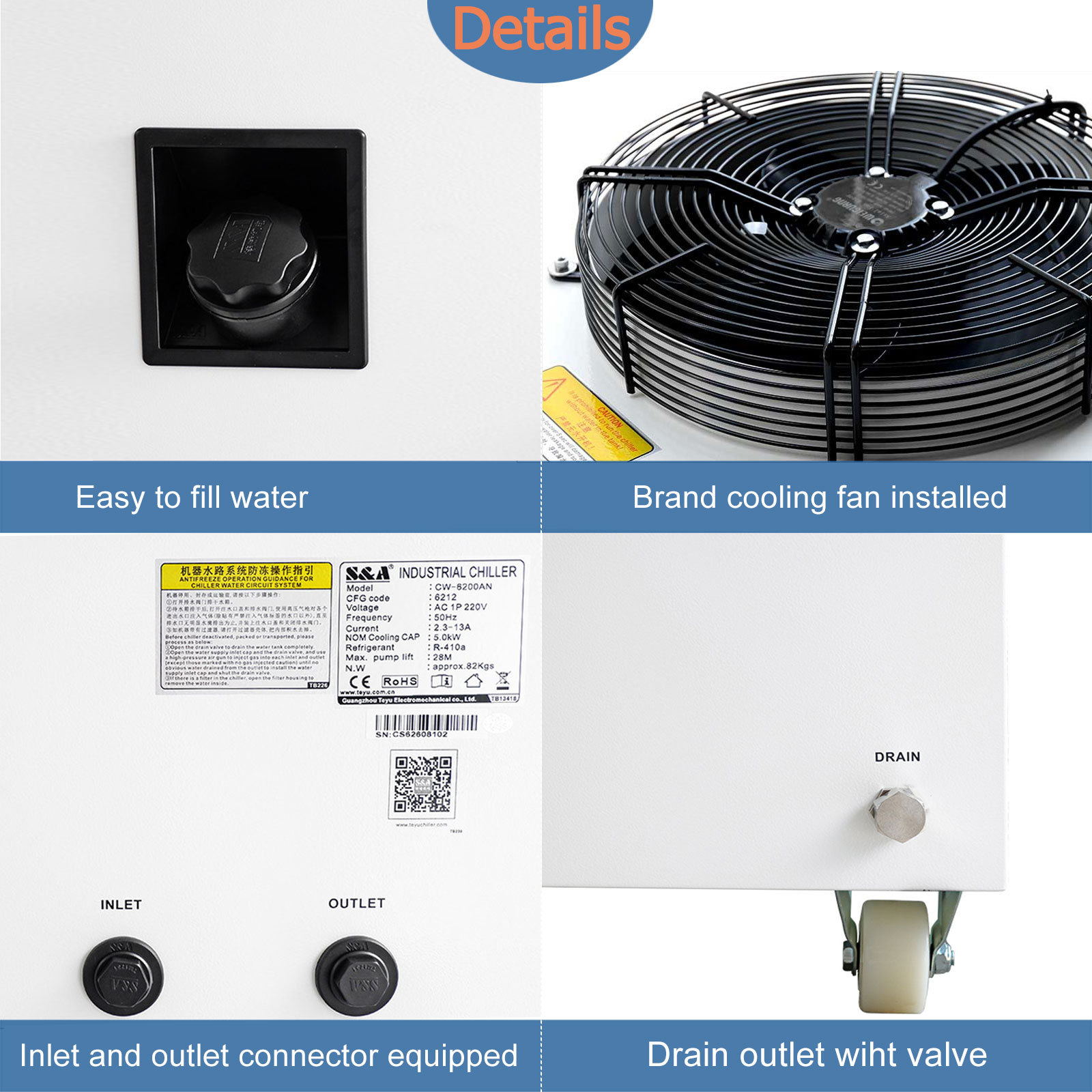

【High Quality Materials】Water inlet and outlet ports made from precision-engineered brass,it has long-term corrosion resistance;Friendly handle and customized dust-proof net;Dual cooling fans,high heat dissipating capacity.

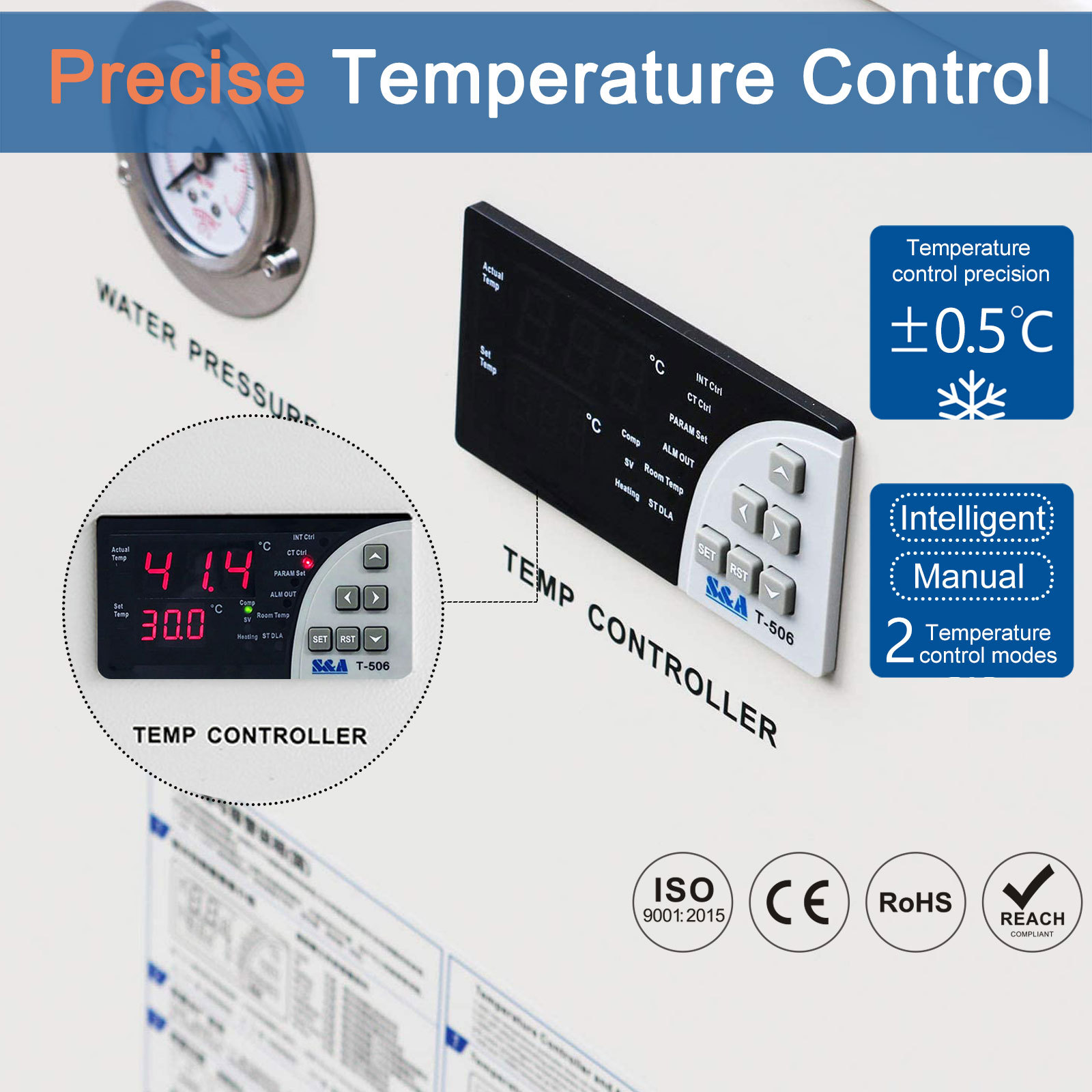

【Precise Temperature Control】S&A industrial water coolers have dual mode temperature control (automatic and intelligent),It can keeps the temperature constant within 0.3°C;Constant & Intelligent temperature mode; Automatically adjust the temperature according to the indoor environment temperature; Manually set the temperature between 5-40 degree.
【Operational Safety】Our water coolers have multiple protection and alarm functions,automatic alarm prompt in case of abnormal flow;if the working water temperature is too high, it will give an automatic alarm;Compressor overcurrent protection: protect refrigeration stability.
【2 years warranty period】Two-year warranty and lifetime professional tech support. Free spare parts and free replacement devices based on actual faults during the maintenance period.

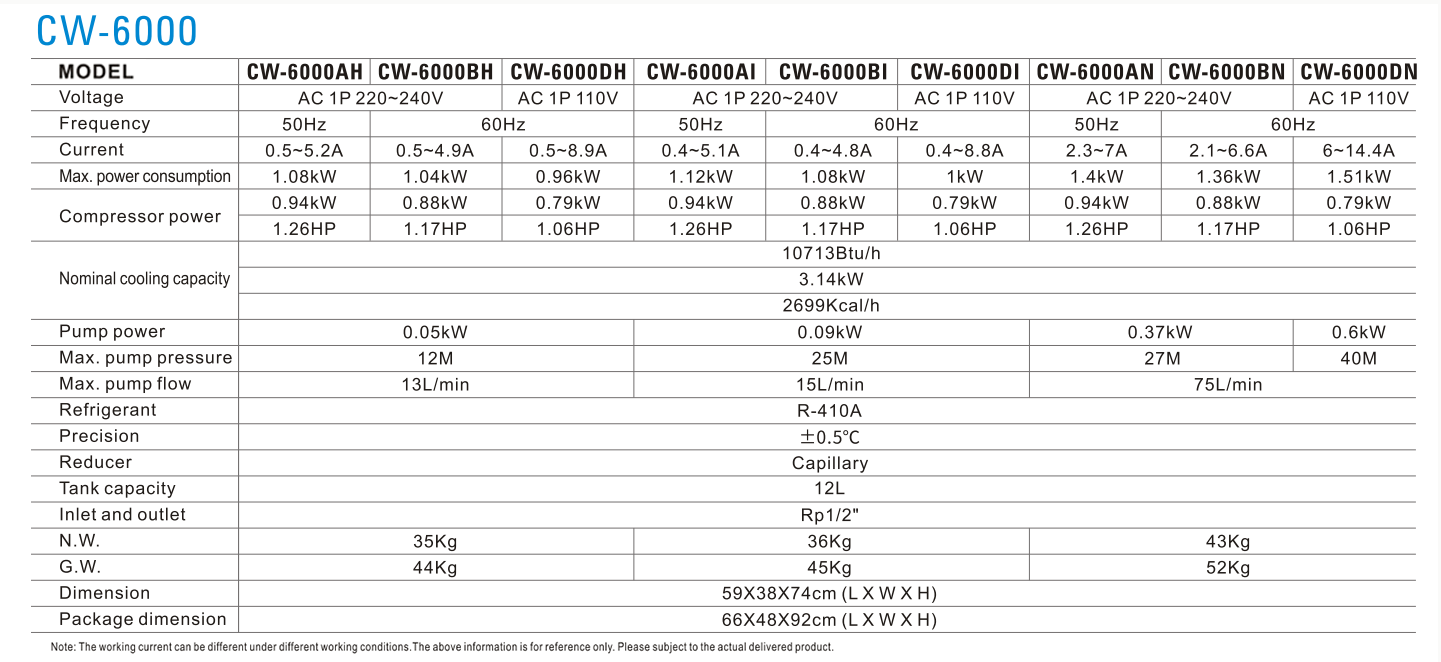

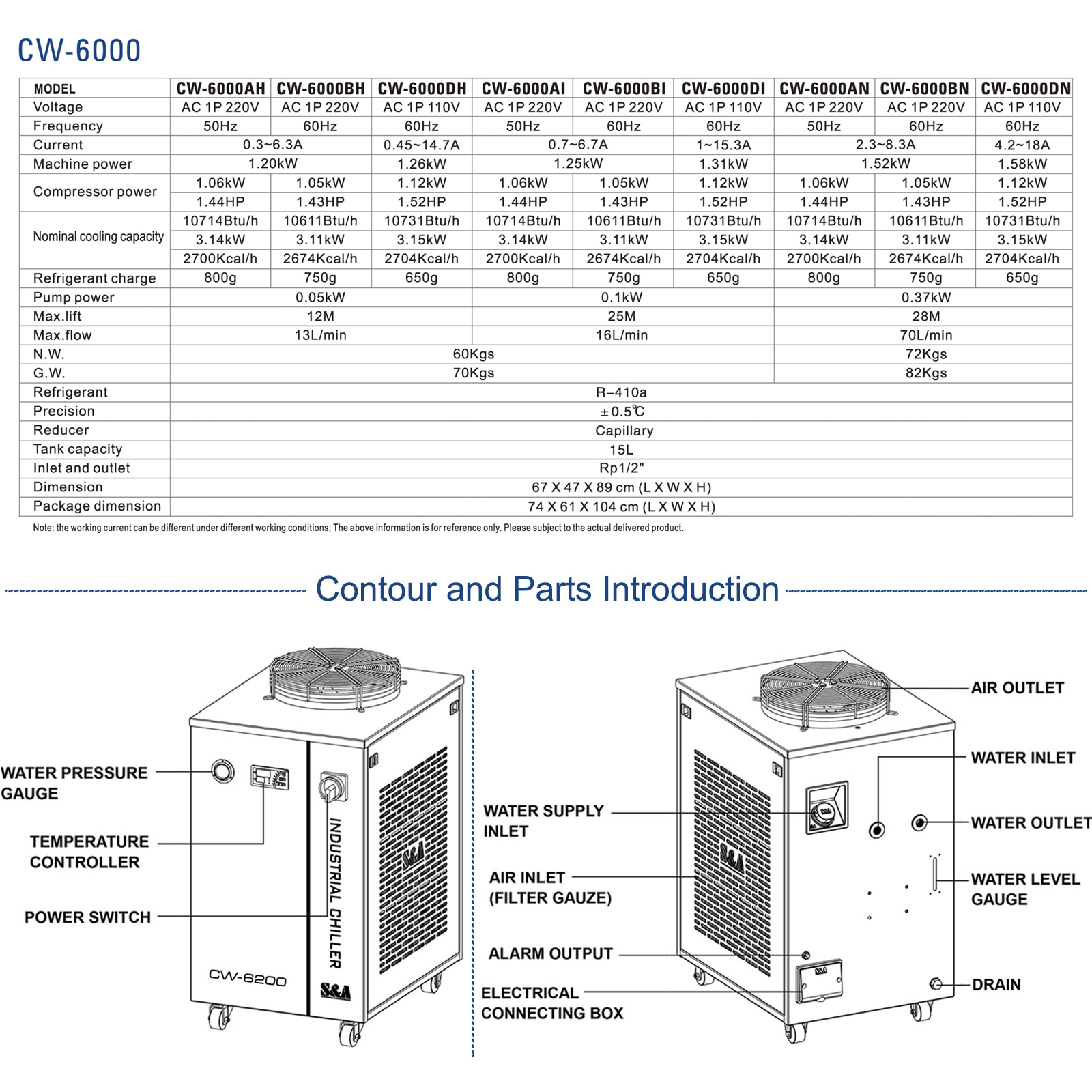

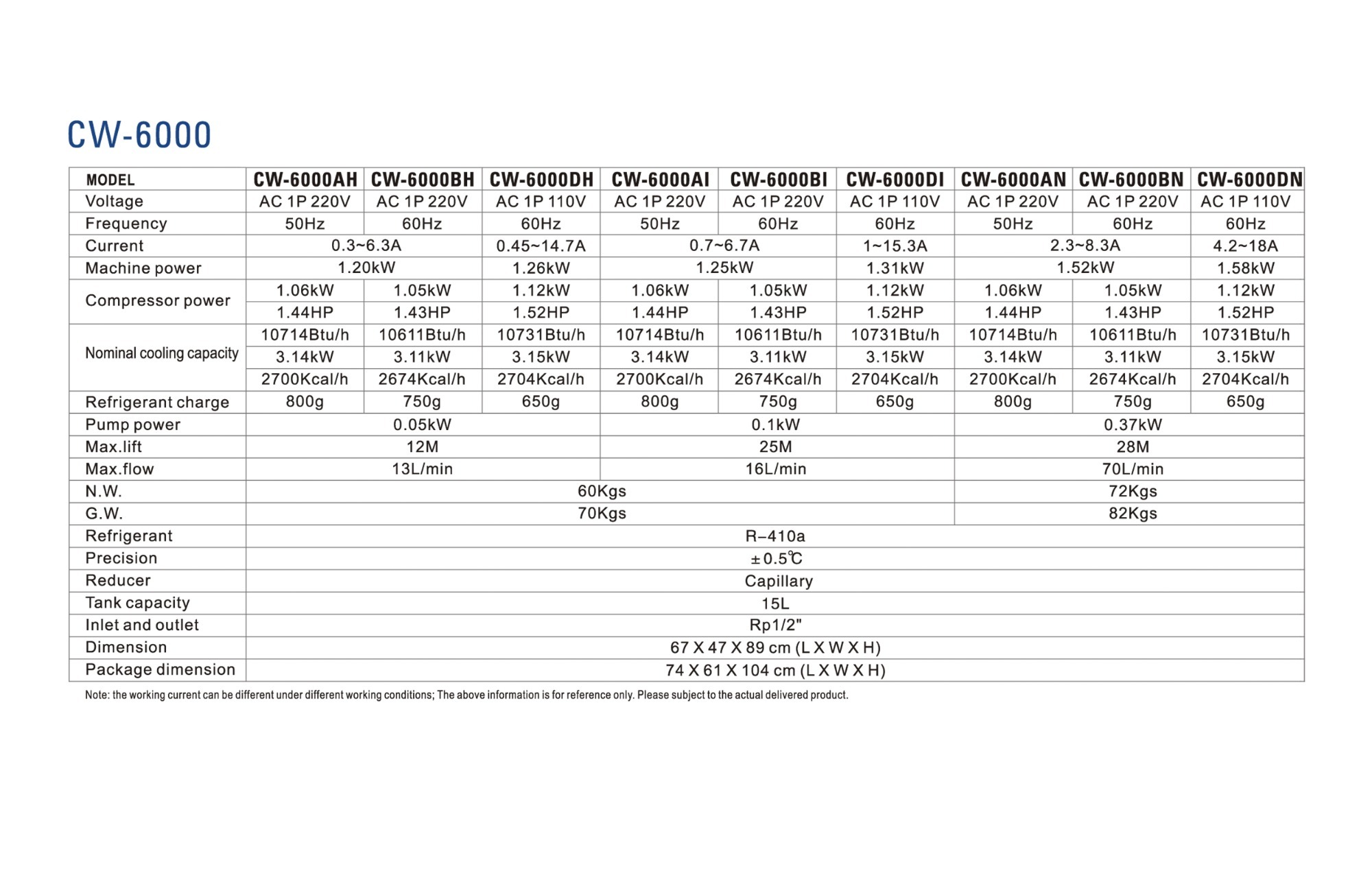

| MODEL | CW-6000AH | CW-6000BH | CW-6000DH | CW-6000AI | CW-6000BI | CW-6000D1 | CW-6000AN | CW-6000BN | CW-6000DN |
| Voltage | AC 1P 220V | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 220V | AC 1P 110V |
| Frequency | 50Hz | 60Hz | 60Hz | 50Hz | 60Hz | 60Hz | 50Hz | 60Hz | 60Hz |
| Current | 0.3~6.3A | 0.45~14.7A | 0.7~6.7A | 1~15.3A | 2.3~8.3A | 4.2~18A | |||
| Machine power | 1.20kW | 1.26kW | 1.25kW | 1.31KW | 1.52kW | 1.58kW | |||
| Compressor power | 1.06kW | 1.05kW | 1.12kW | 1.06kW | 1.05kW | 1.12kW | 1.06kW | 1.05kW | 1.12kW |
| 1.44HP | 1.43HP | 1.52HP | 1.44HP | 1.43HP | 1.52HP | 1.44HP | 1.43HP | 1.52HP | |
| Nominal cooling capacity | 10714Btu/h | 10611Btu/h | 10731Btu/h | 10714Btu/h | 10611Btu/h | 10731 Btu/h | 10714Btu/h | 10611 Btu/h | 10731Btu/h |
| 3.14kW | 3.11kW | 3.15kW | 3.14kW | 3.11kW | 3.15kW | 3.14kW | 3.11kW | 3.15kW | |
| 2700Kcal/h | 2674Kcal/h | 2704Kcal/h | 2700Kcal/h | 2674Kcal/h | 2704Kcal/h | 2700Kcal/h | 2674Kcal/h | 2704Kcal/h | |
| Refrigerant charge | 800g | 750g | 650g | 800g | 750g | 650g | 800g | 750g | 650g |
| Pump power | 0.05kW | 0.1kW | 0.37kW | ||||||
| Max.lift | 12M | 25M | 28M | ||||||
| Max.flow | 13L/min | 16L/min | 70L/min | ||||||
| N.W. | 60Kgs | 72Kgs | |||||||
| G.W. | 70Kgs | 82Kgs | |||||||
| Refrigerant | R-410a | ||||||||
| Precision | ±0.5C | ||||||||
| Reducer | Capillary | ||||||||
| Tank capacity | 15L | ||||||||
| Inlet and outlet | Rp1/2" | ||||||||
| Dimension | 67 X47 X89 cm(L XWX H) | ||||||||
| Package dimension | 74X61 X 104 cm(L XWX H) | ||||||||
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
