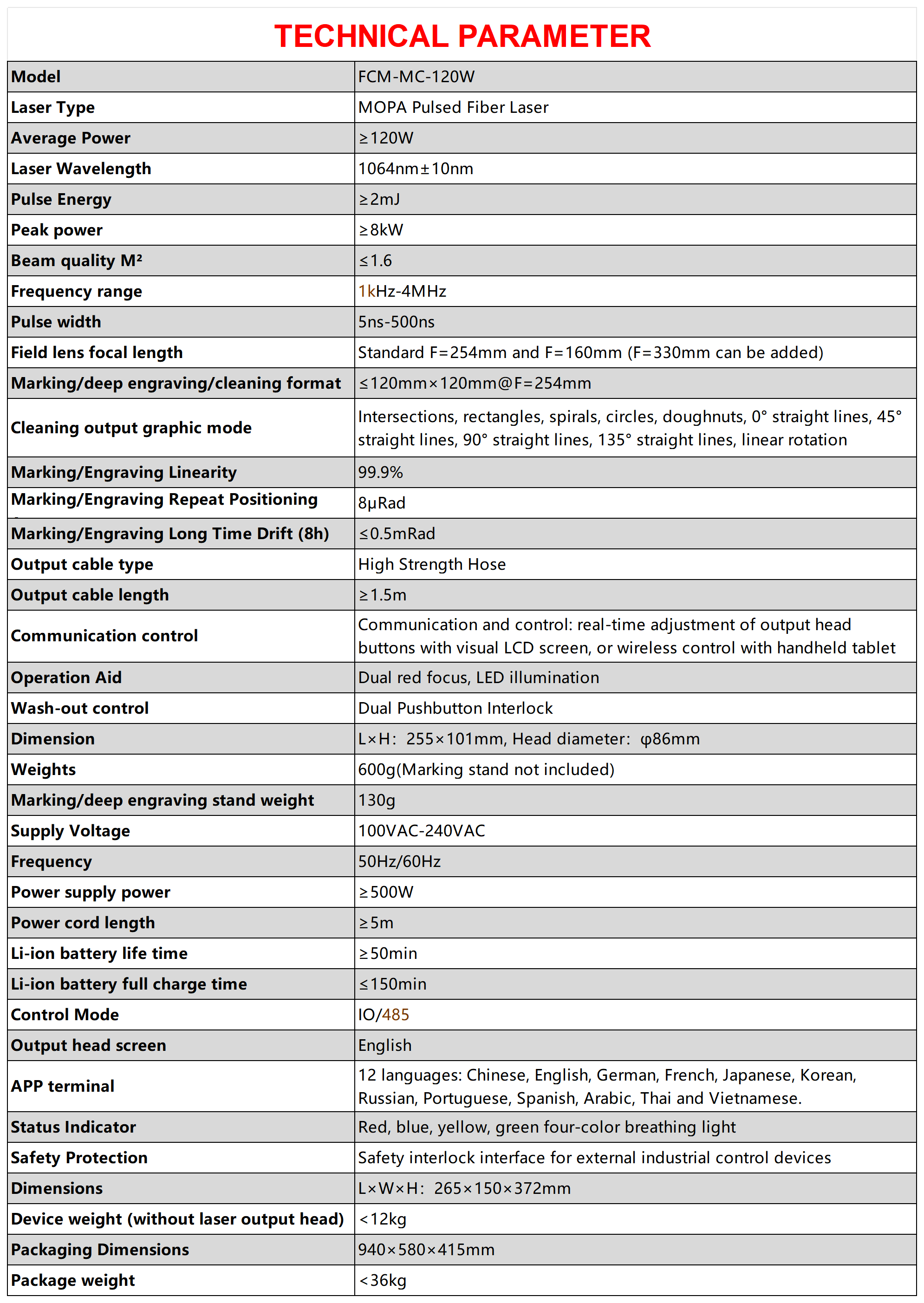

Items |
Parameters |
|---|---|
|
Model |
FCM-MC-120W |
|
Laser Type |
MOPA Pulsed Fiber Laser |
|
Average Power |
≥120W |
|
Laser Wavelength |
1064nm ±10nm |
|
Pulse Energy |
≥2mJ |
|
Peak Power |
≥8kW |
|
Beam Quality (M²) |
≤1.6 |
|
Frequency Range |
1kHz–4MHz |
|
Pulse Width |
5ns–500ns |
|
Field Lens Focal Length |
Standard F=254mm and F=160mm (Optional F=330mm) |
|
Marking/Deep Engraving/Cleaning Format |
≤120mm × 120mm @ F=254mm |
|

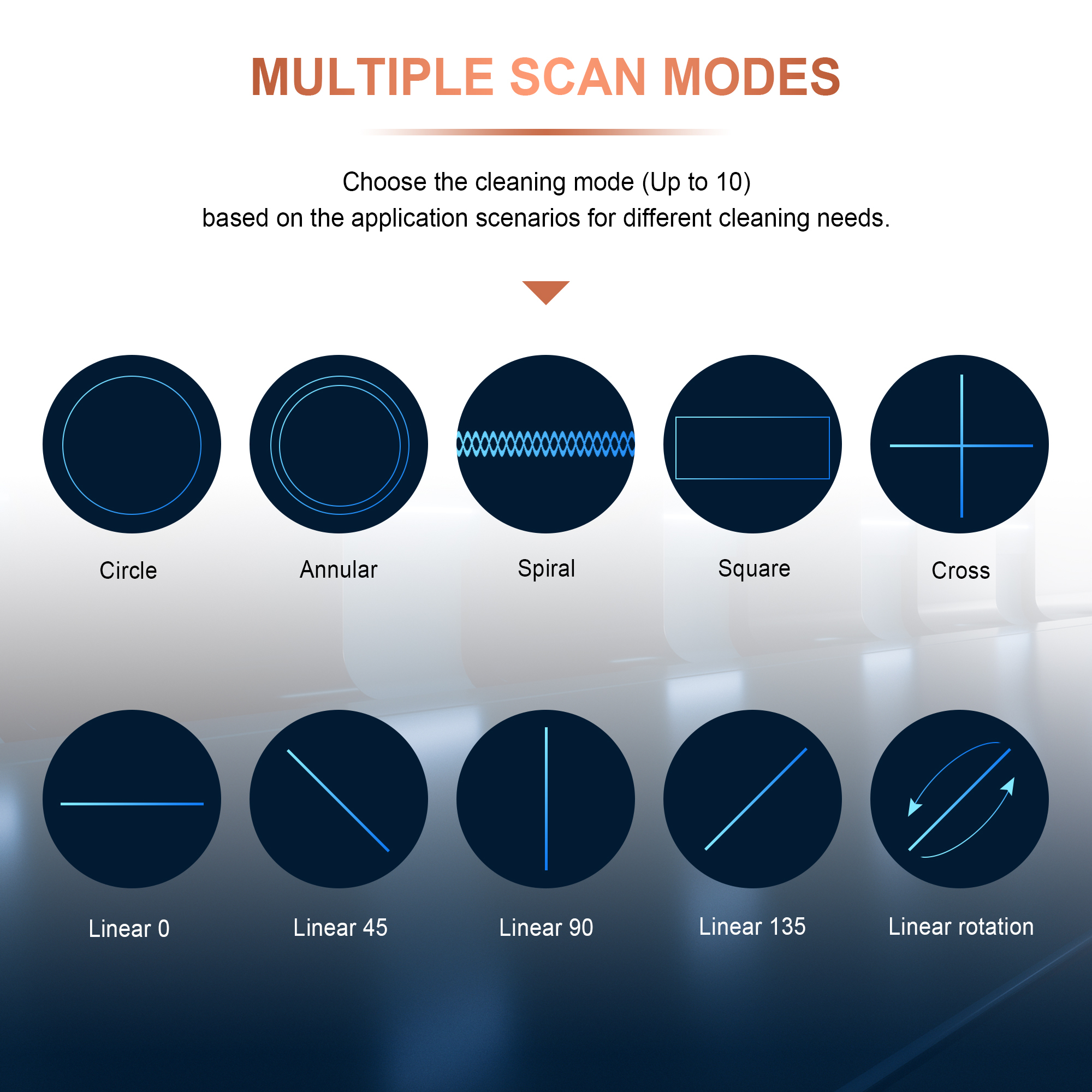

Cleaning Output Graphic Mode |
Intersections, rectangles, spirals, circles, doughnuts, 0°/45°/90°/135° straight lines, linear rotation |
|
Marking/Engraving Linearity |
0.999 |
|
Marking/Engraving Repeat Positioning |
8µRad |
|
Marking/Engraving Long Time Drift (8h) |
≤0.5mRad |
|
Output Cable Type |
High Strength Hose |
|
Output Cable Length |
≥1.5m |
|

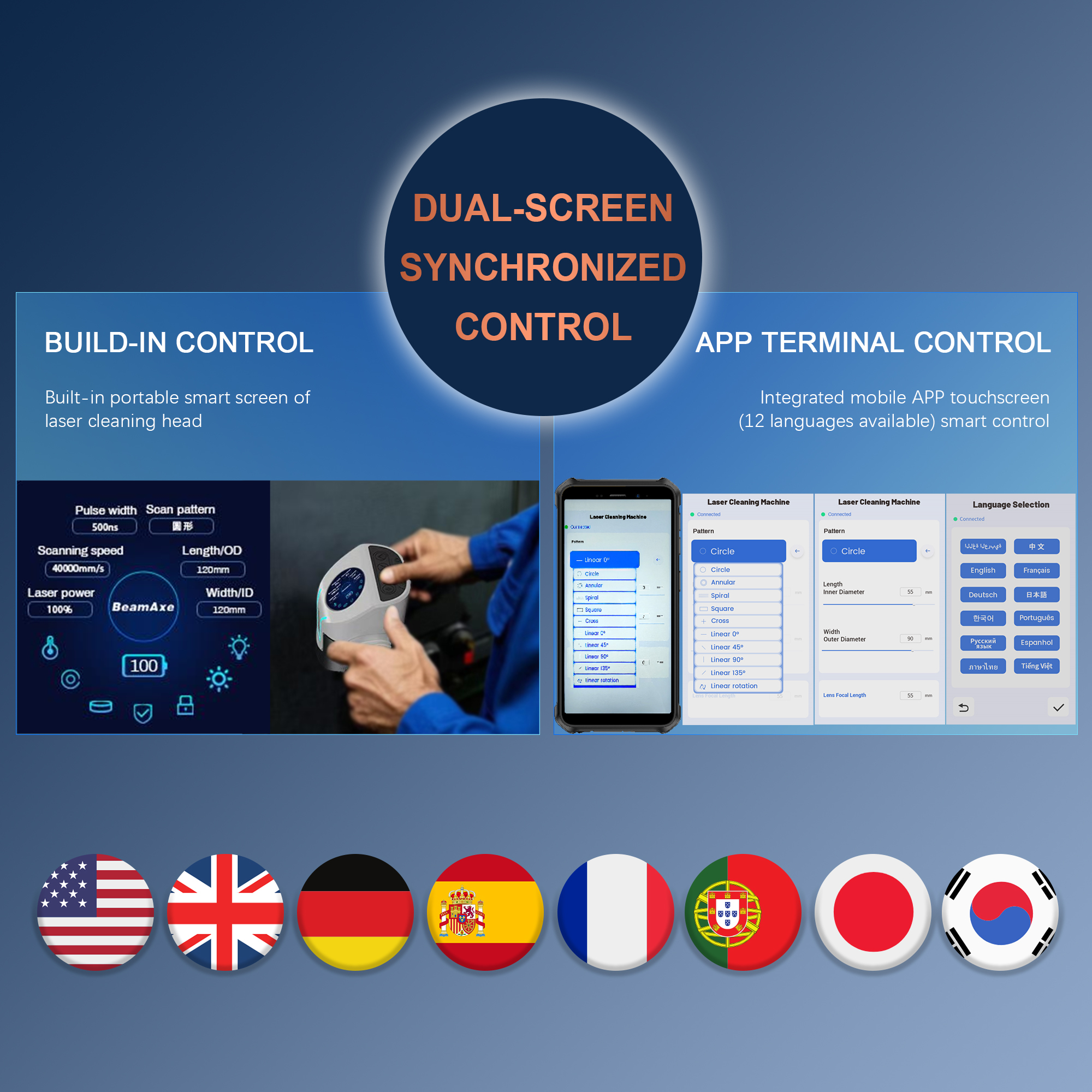

Communication Control |
Real-time adjustment via output head buttons with LCD screen or wireless handheld tablet |
|
Operation Aid |
Dual red focus, LED illumination |
|
Items |
Parameters |
|---|---|
|
Wash-out Control |
Dual Pushbutton Interlock |
|

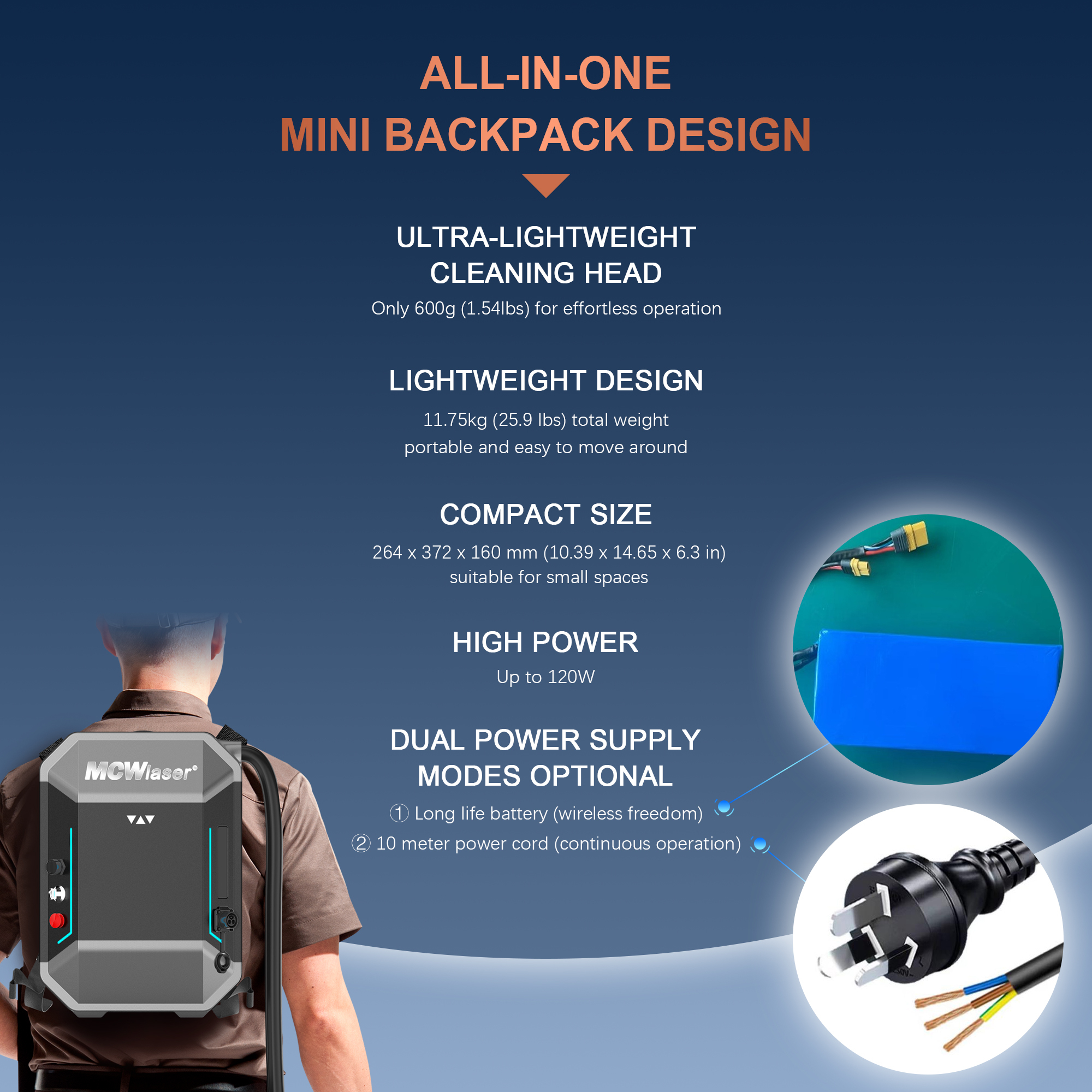

Output Head Dimension |
L×H: 255×101mm, Head Diameter: φ86mm |
|
Output Head Weight |
600g (Marking stand not included) |
|
Marking/Deep Engraving Stand Weight |
130g |
|
Supply Voltage |
100VAC–240VAC |
|
Frequency |
50Hz/60Hz |
|
Power Cord Length |
≥5m |
|
Li-ion Battery Life Time |
≥50min |
|
Li-ion Battery Full Charge Time |
≤150min |
|
Control Mode |
IO/485 |
|
Output Head Screen Language |
English |
|
APP Terminal Languages |
12 languages (Chinese, English, German, French, Japanese, Korean, Russian, Portuguese, Spanish, Arabic, Thai, Vietnamese) |
|
Status Indicator |
Red, blue, yellow, green four-color breathing light |
|
Safety Protection |
Safety interlock interface for external industrial control devices |
|
Device Dimensions (Main Unit) |
L×W×H: 265×150×372mm |
|
Device Weight (Without Output Head) |
<12kg |
|
Gross Weight |
<36kg |

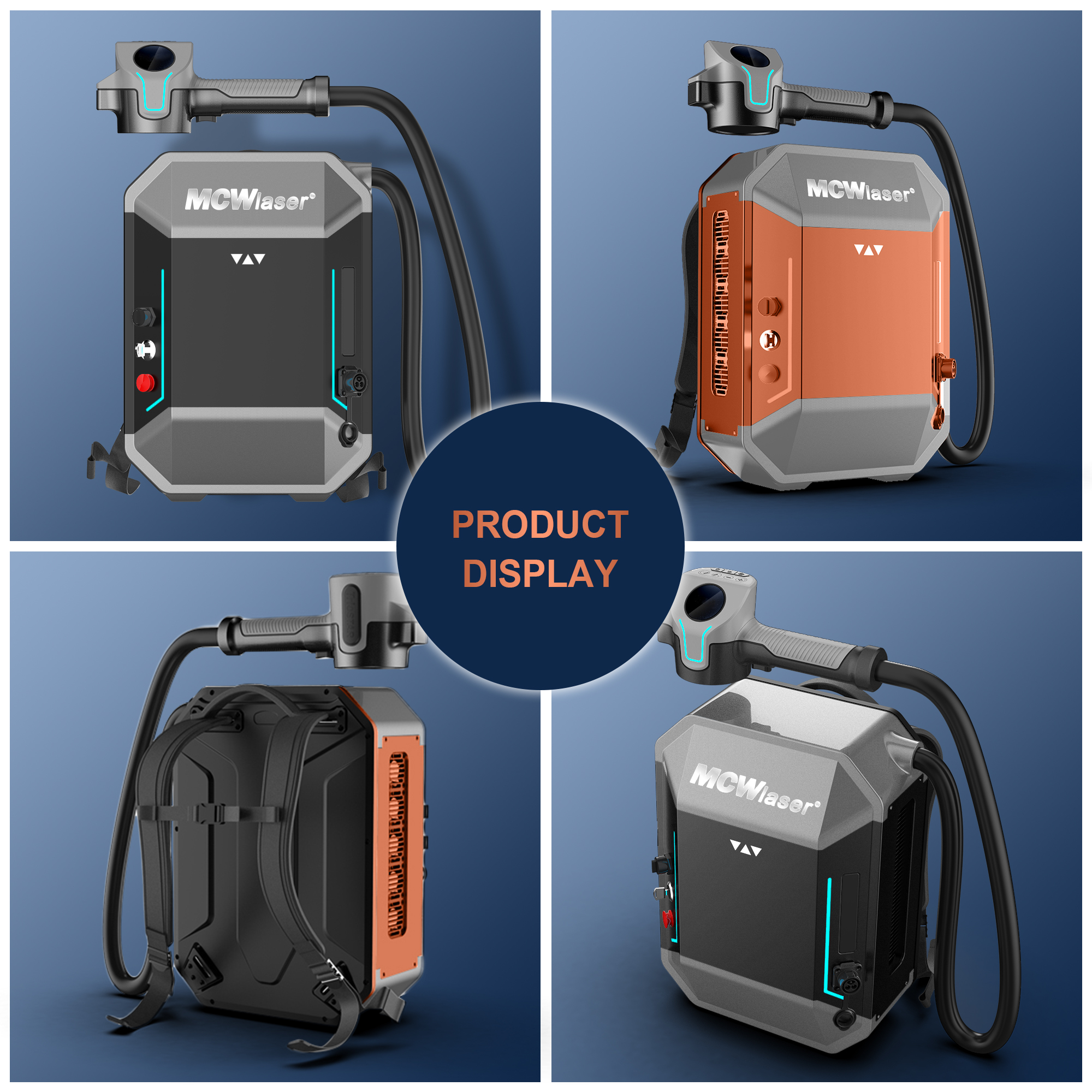

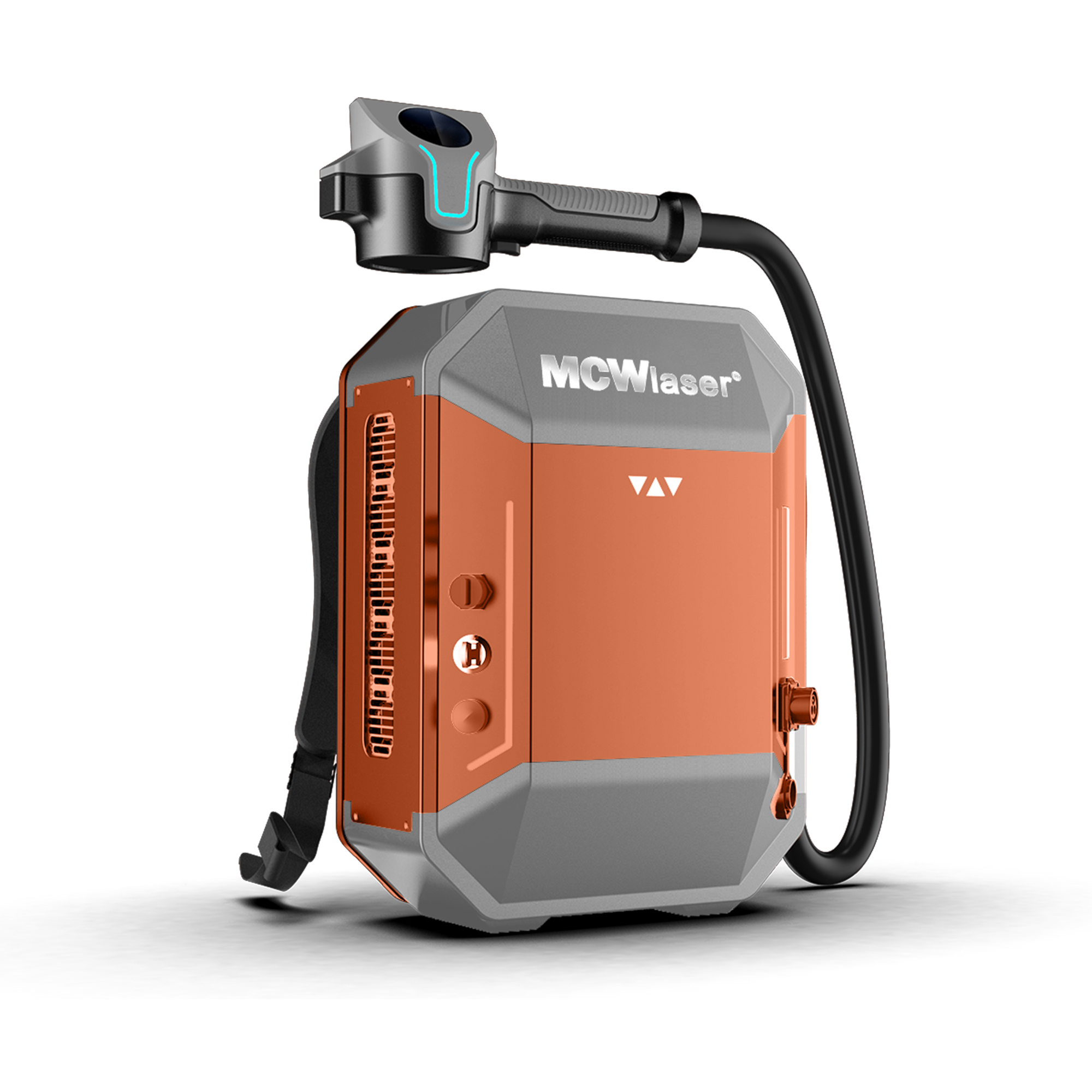

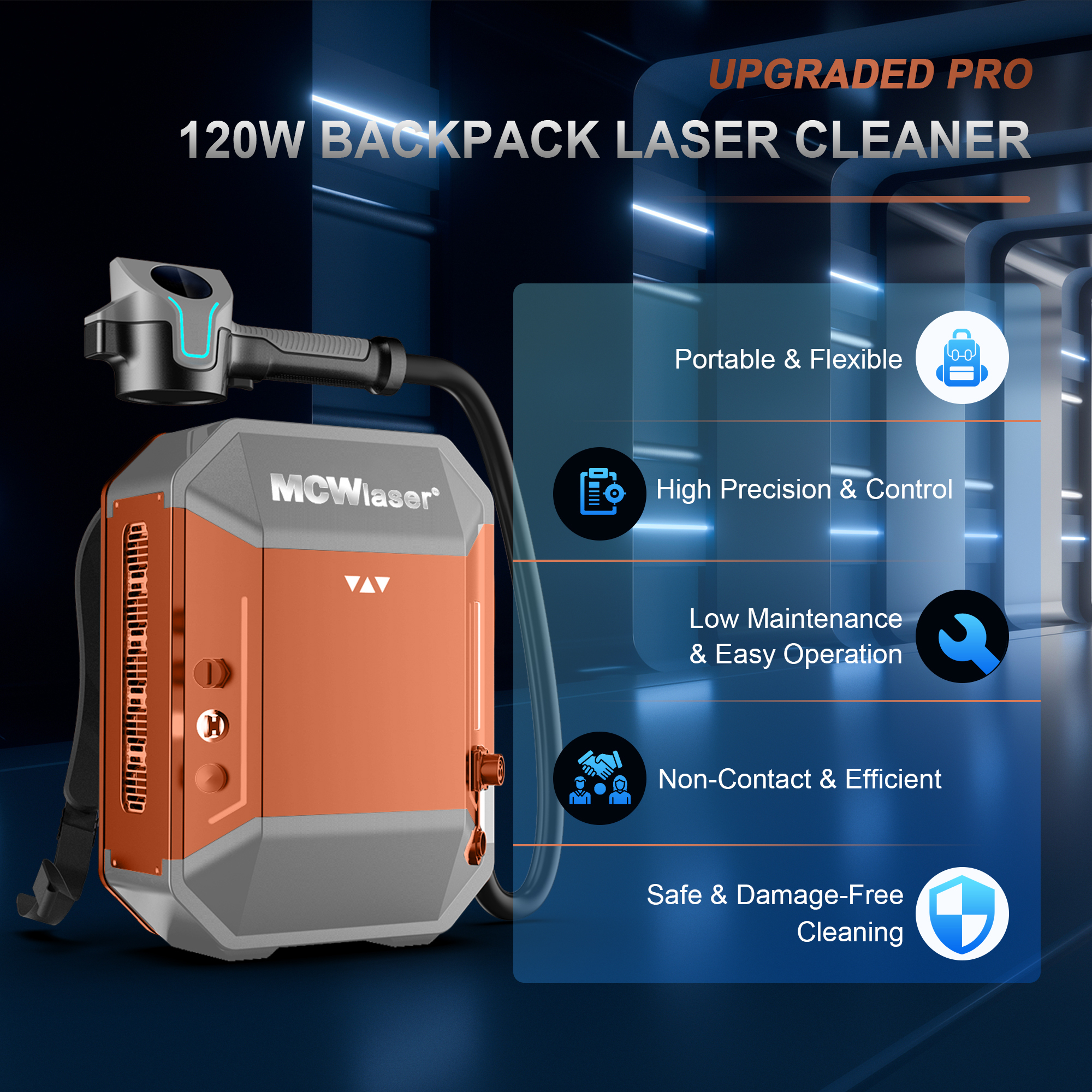

The Portable Handheld Pulse Laser Cleaning Machine is a tool designed for removing contaminants, rust, paint, and other unwanted materials from surfaces using laser technology. Offers higher precision and control over the depth of material removal. It is effective for selective cleaning applications where specific contaminants need to be removed without affecting the underlying substrate.
Its applications can be found in various industries. Some common applications include:
Metal Surface Cleaning(including Rust and Paint Removal),Industrial Maintenance,Historical Artifact Restoration,Automotive Industry,Aerospace Industry,Electronics Manufacturing, Construction Industry, Nuclear Industry, Shipbuilding and Maritime Applications,Oil and Gas Industry.
