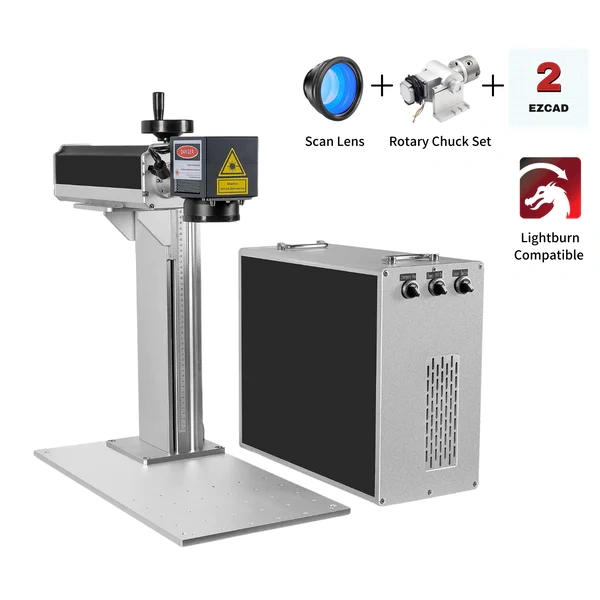

MCWlaser 30W/60W/80W/100W MOPA JPT M7 Fiber Laser Engraver Marking Machine

★ Easy and convenient operation.
★ Imported high-speed Galvanometer fast focus, double red light device easy focus.
★ Anodized Aluminum Black Marking, Stainless Steel Color Marking (JPT M7)
★ 2-Year Warranty & Lifetime Tech Support
★ Certified: FDA and CE
★ Door to door service with free delivery.

Features:

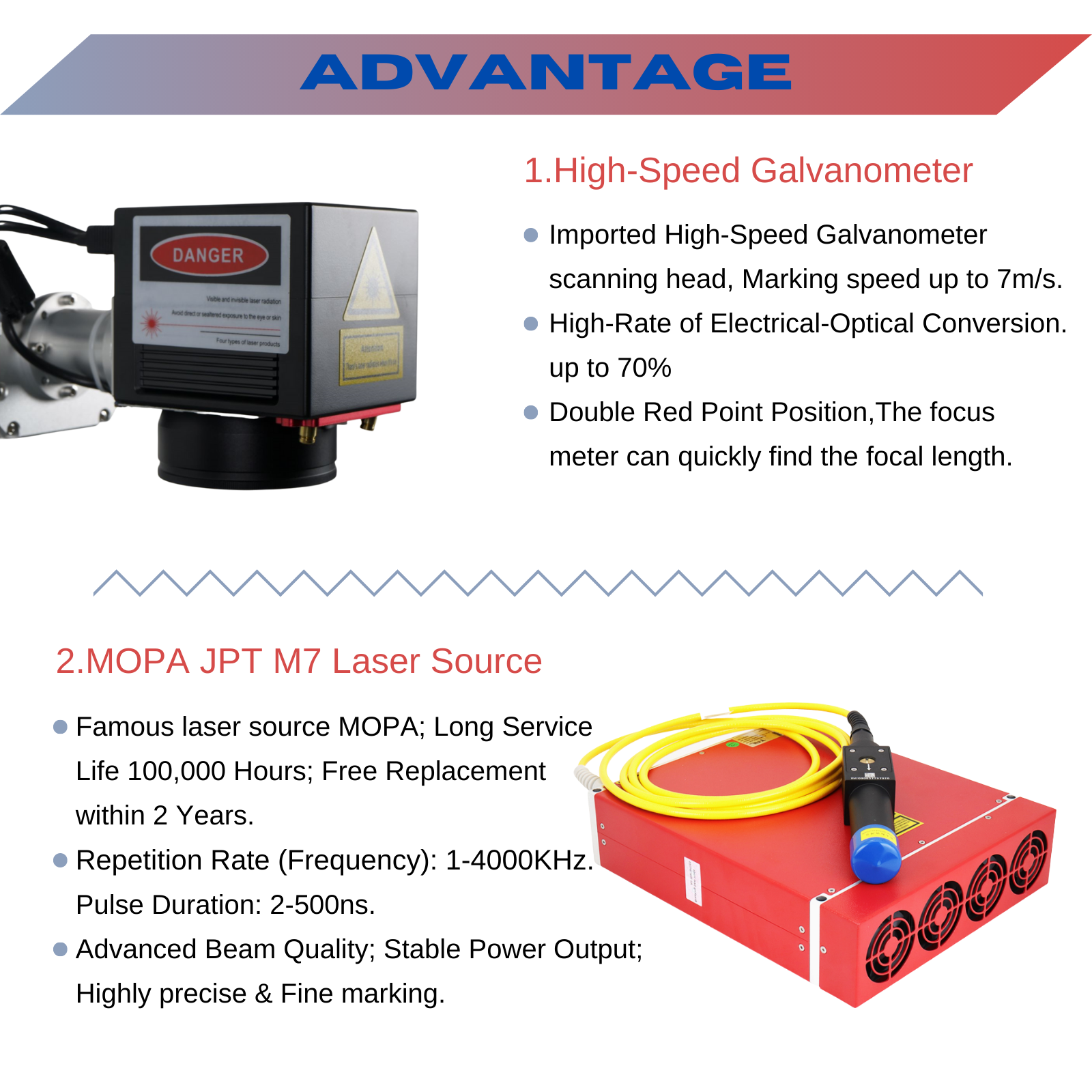

① MOPA JPT M7 laser source: Advanced Beam Quality; Stable Power Output and Higher Marking Speed; Long Service Life 100,000 Hours; Free Replacement within 2 Years.
② Reliable Galvanometer: Imported high-speed galvanometer scanning head, marking speed up to 7m/s. High-Rate of Electrical-Optical Conversion up to 70%.High Precision; High Efficiency; Long Life Span.

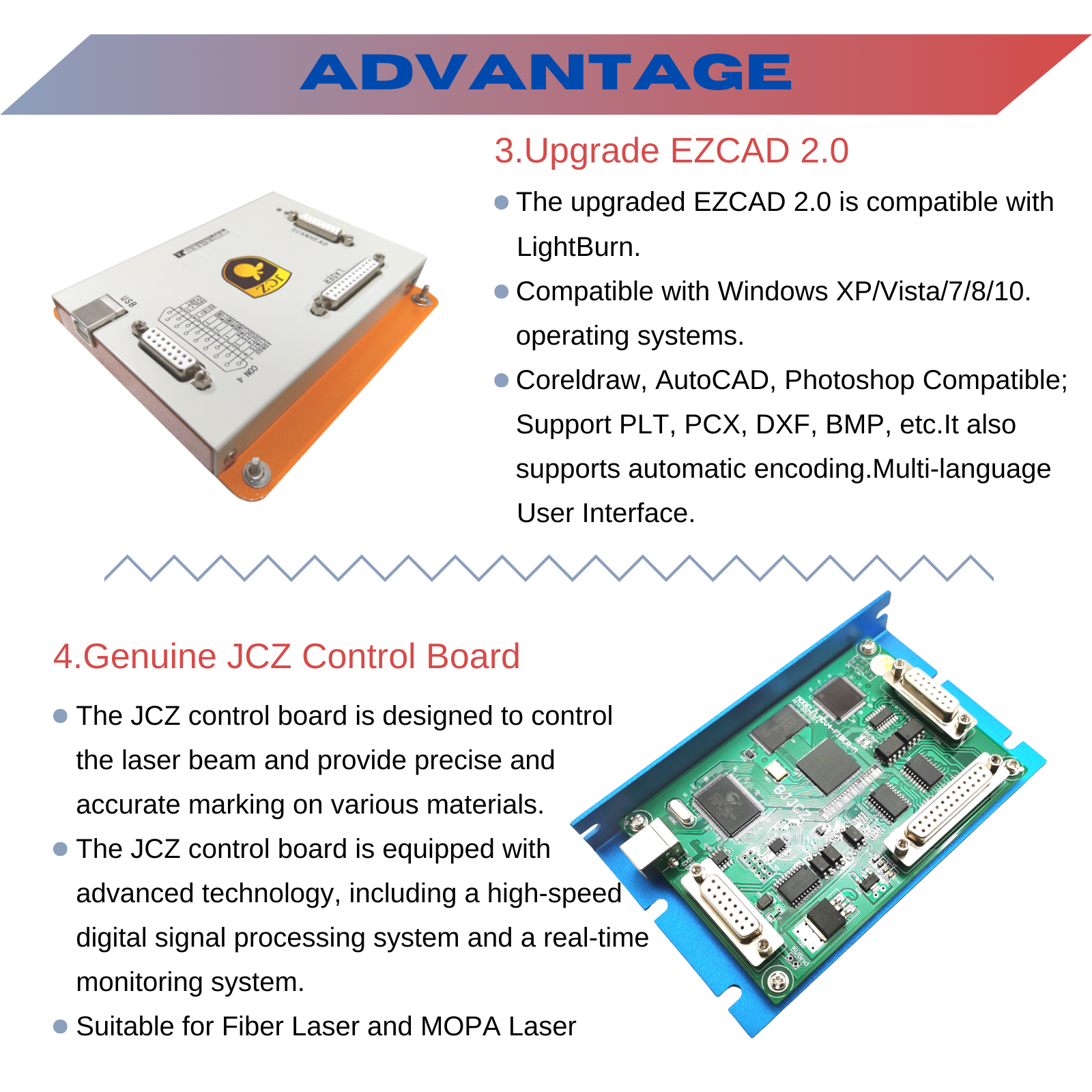

③ Controller and Software: Newest upgraded EZCAD 2.0 controller (Compatible with Lightburn).Support multiple languages;Easy to Operate;Compatible with Windows XP/Vista/7/8/10.
④ Stable F-theta Lens: Energy Uniformity and Little Attenuation,Small Focus Spot; Deep Edge Marking; 70×70mm,110×110mm,150×150mm,175×175,200×200,220×220mm,300×300mm,Various Working Area Optional.
⑤ Red light positioning: Double Red Point Position,The focus meter can quickly find the focal length, simply look at the surface of the product to be marked to see if the two red dots overlap.

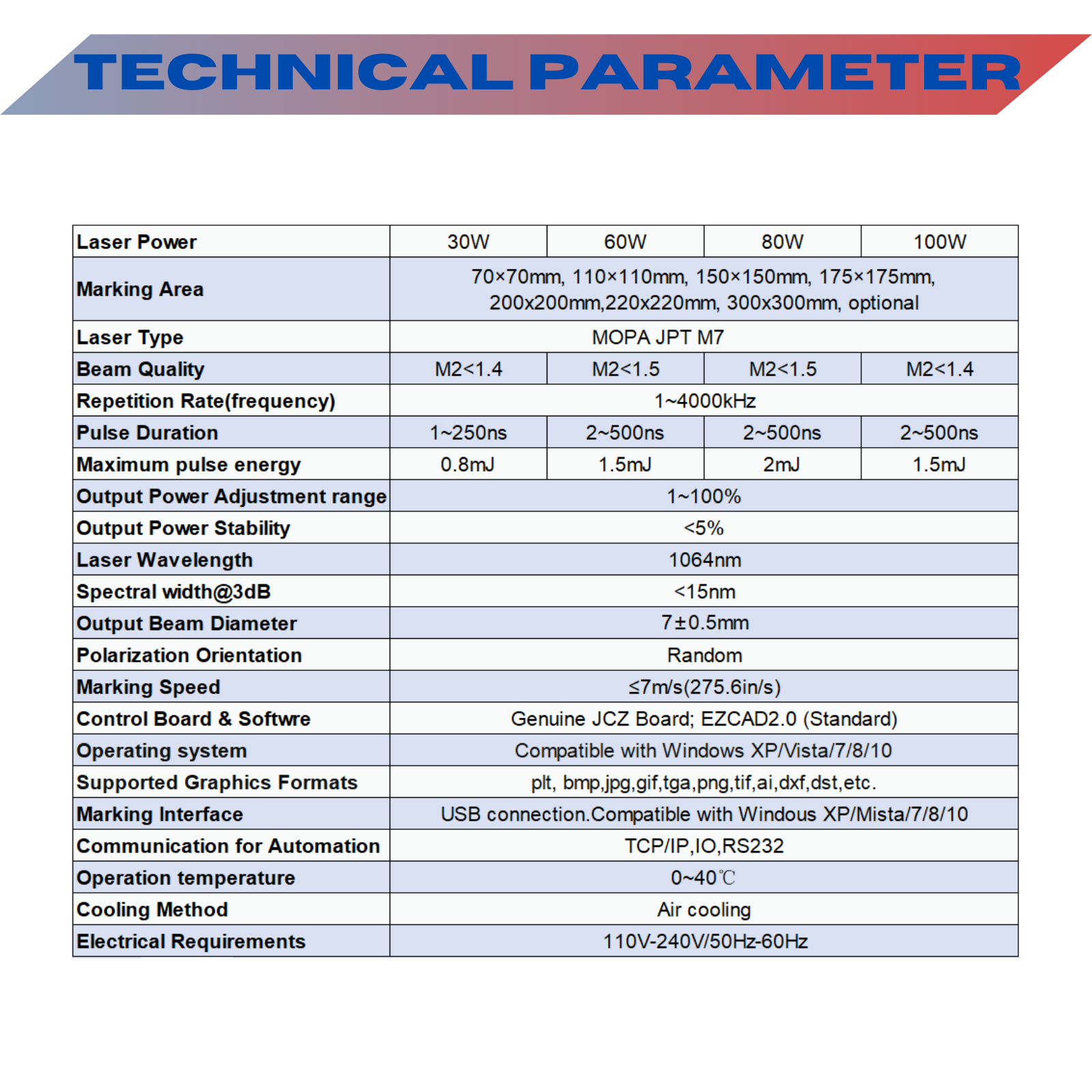

Technical parameters:

Application:

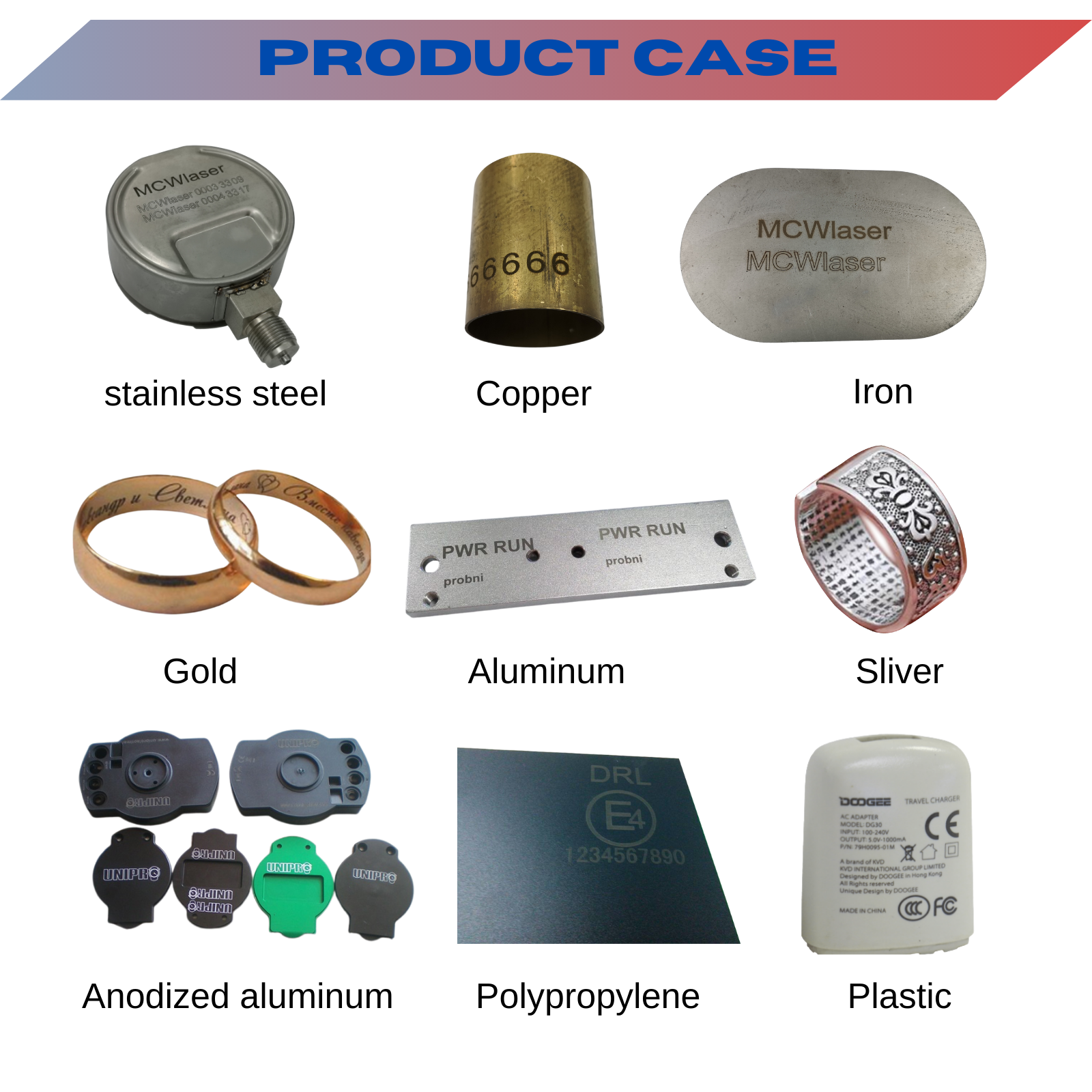

Applicable Material: Carbon Steel, Aluminum, Stainless Steel, Brass, Copper,Gold, Silver, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,Leather,etc. Not sure,contact with us.

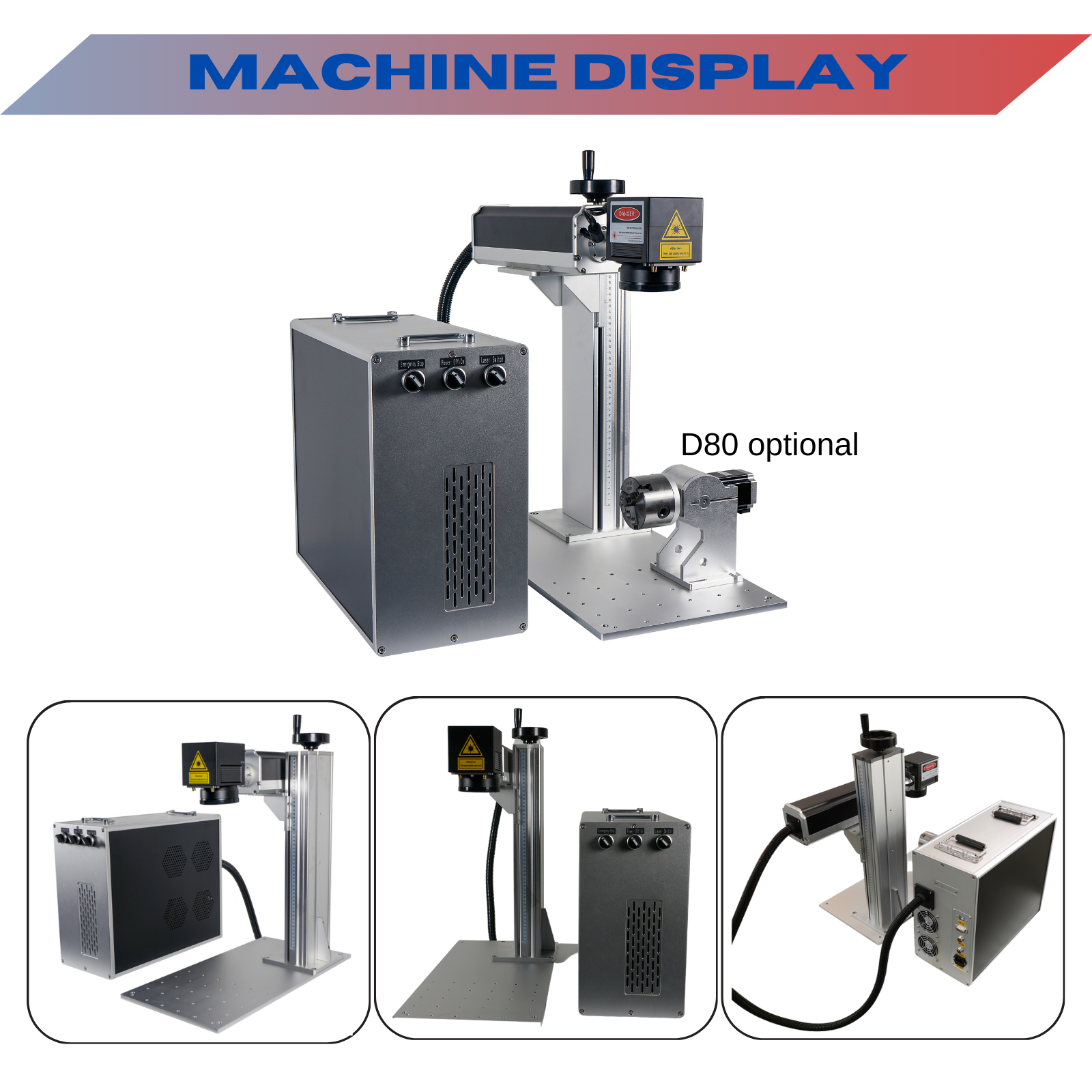

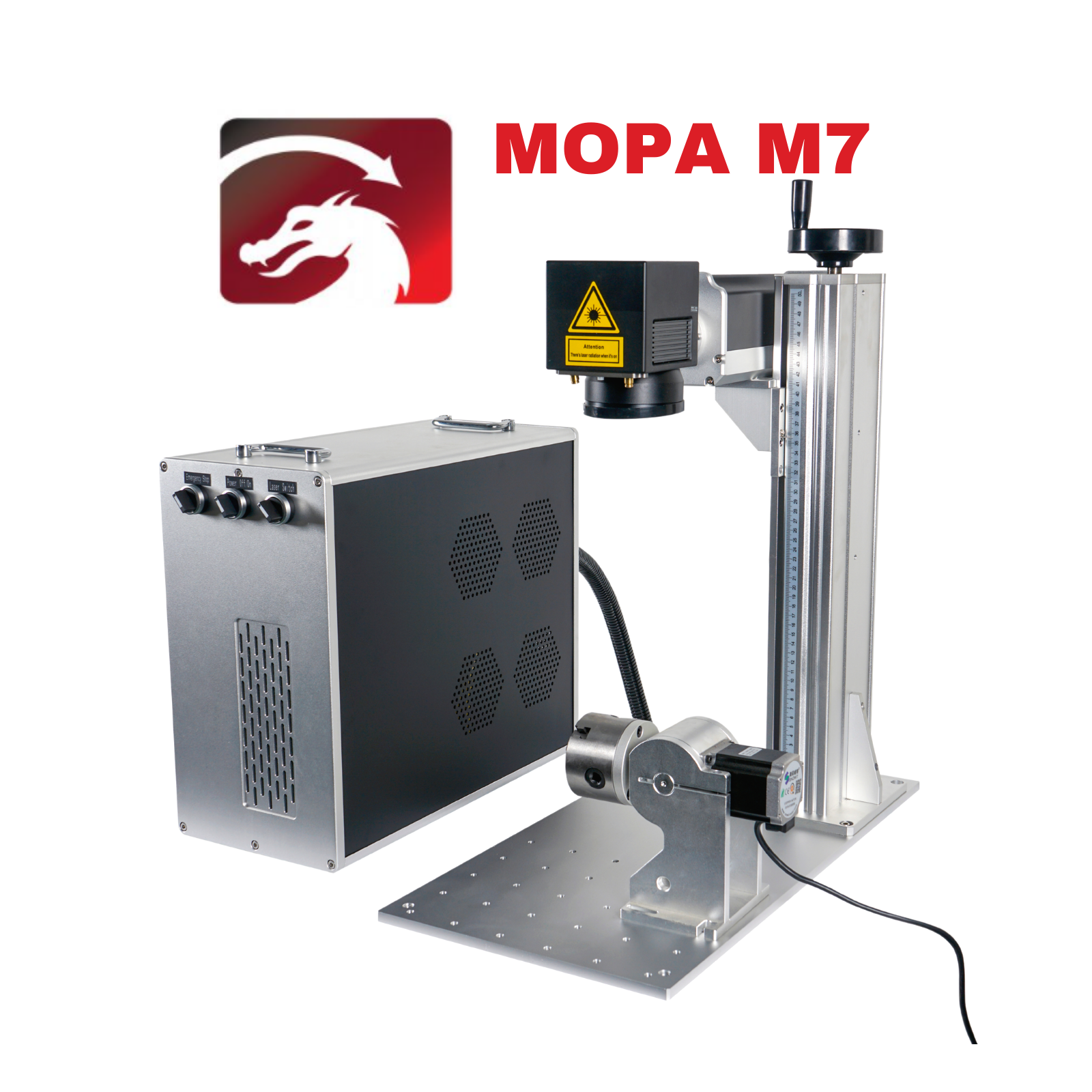

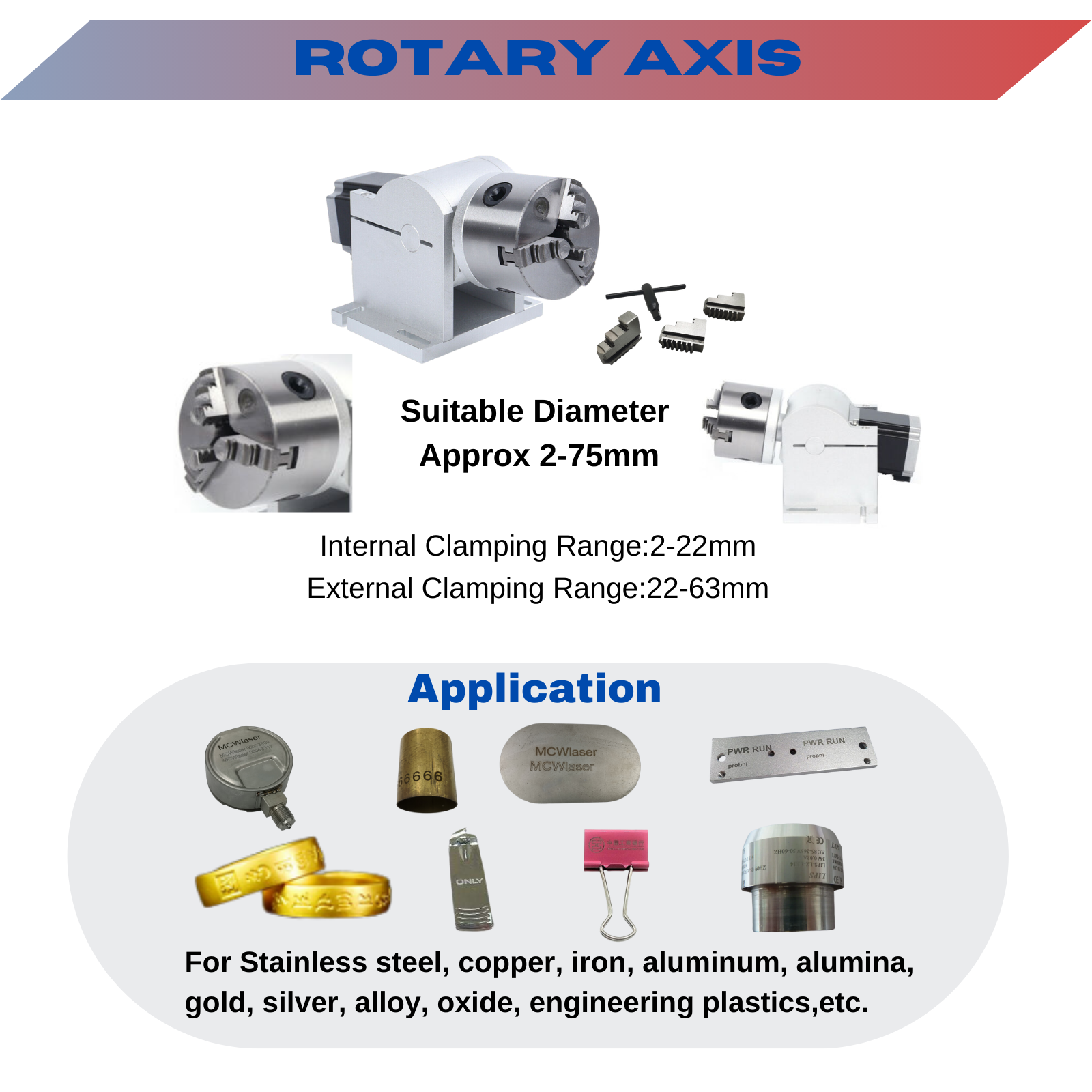

D80 Rotary axis:

• 80mm (3.15in) three-jaw rotary axis + drive.
• 57/76 Stepper motor; 1m long cord, 4 pins and 1 spare spring.
• Internal clamping range:2-22mm; external clamping range:22-63mm.
• 180° rotary positioning;elevation angle 45°/90°.
• Stainless steel material; Quick clamping. Synchronous wheel drive;Effectively eliminate jtter. Rotary spring clamping, fast mounting and dismounting to improve work efficiency.
• ​​​​Industrial standard interface,use aviation plug fits various board card.
• Be mainly for cuboid and circular objects, such as rings, pen, bearinge,bracelets,hardware,etc.
• Other rotation axis optional: 69mm,100mm,125mm,160mm,200mm,300mm.

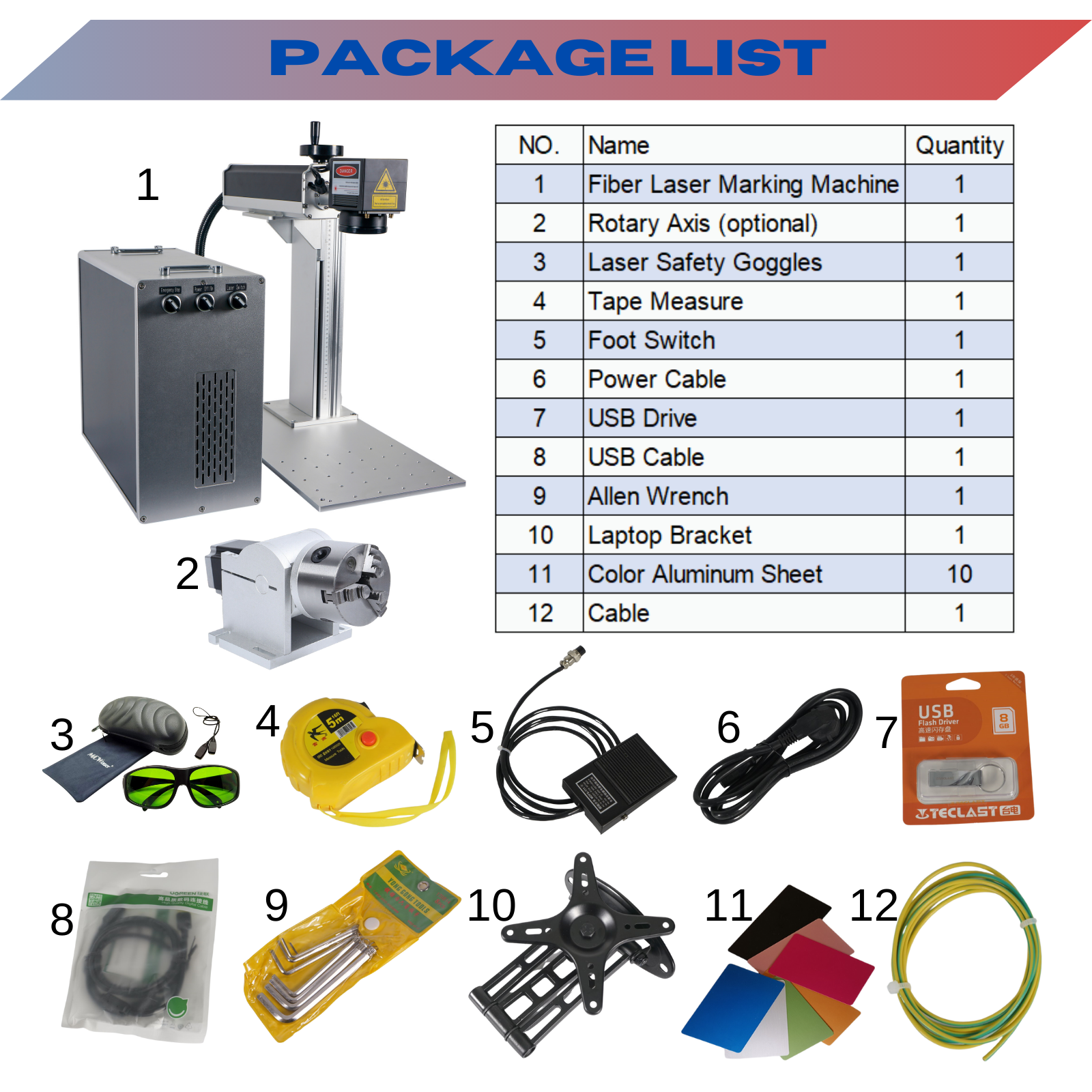

Package List:
