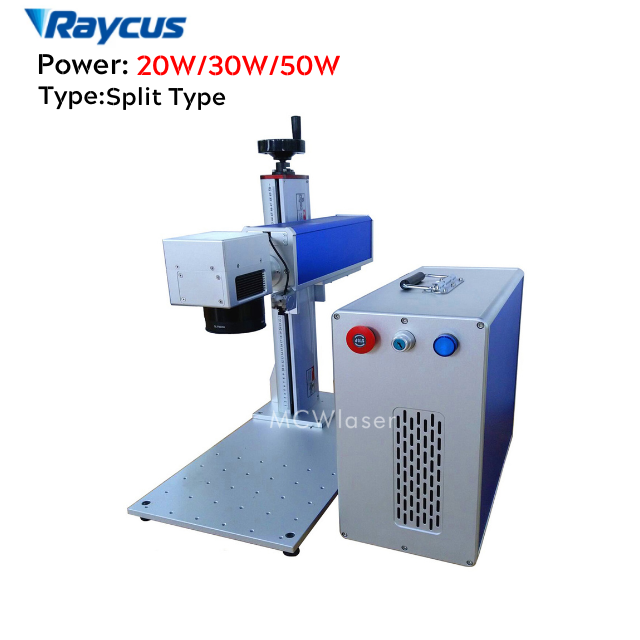

MCWlaser 20W Max or Raycus Fiber Laser Making Machine Metal Engraving Marking 1064nm Split Type

  • Power:
    20W 110V
    20W 220V

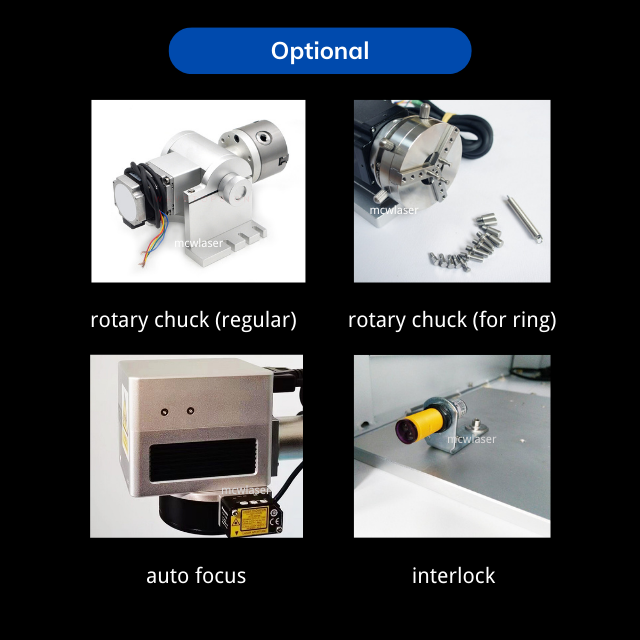

    20W 110V + Rotary Chuck
    20W 220V +Rotary Chuck
(39 available)
Please select the information you wantX
  • Description
  • Shipping & Return
  • Reviews

●Raycus or Max laser source,good laser beam and higher photoelectric conversion; Better marking effect and higher precision.
●2-Year Warranty and free replacement for laser source within warranty period.
●No maintenance,10,0000 hours service time; Low operation cost.
●Multifunctional marking software; Supports Windows XP, Win7, Win8, Win10 (32bits and 64bits). It can be compatible with Coreldraw, AutoCAD, Photoshop; The supported file formats include PLT(recommended), PCX, DXF, BMP, etc.
●Good touch interface and powerful control system,Air cooling.
●Easy to use by unskilled operator;Marks directly to product, eliminates labels-cost.

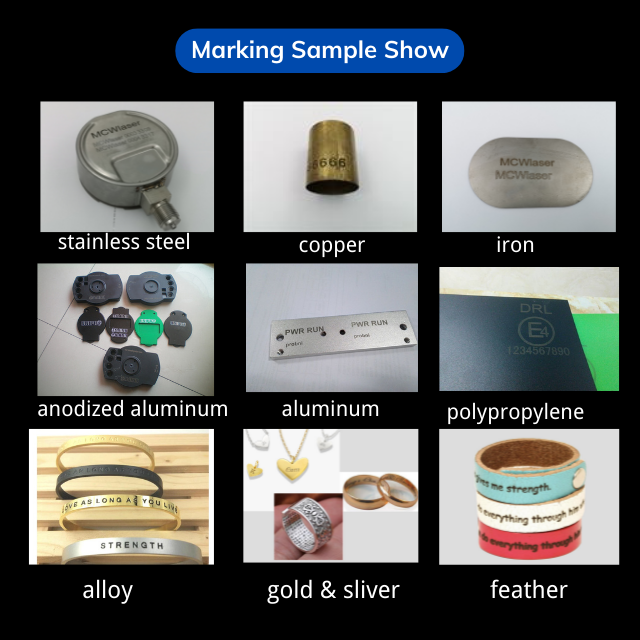

●This machine can also achieve automatic arrangement and modification of text, logo, symbols, images, graphics, bar code, two dimensional bar code, serial number automatically increasing, etc





Technical Parameter:

      Working Area:  110x110mm (default);
                                    75x75mm,150x150mm,175x175mm (Optional)


About Power:

●20W: No depth requirement when engraving or marking

●30W: Normal engraving or marking (most widely used and most cost-effective)

●50W: For deep marking or engraving

About working area:

●Normally, the default working area is recommended when we order the machine.

●For the same power machine, smaller working area gives higher precise and better marking effect.

About Voltage:

●Ships the machine according to the default voltage in the receiving country of the order. US 110V; Europe 220V .

The default shipping ways is by DHL/UPS/TNT air express with door to door service, 4-5 working days delivery to US and most country of west Europe.
