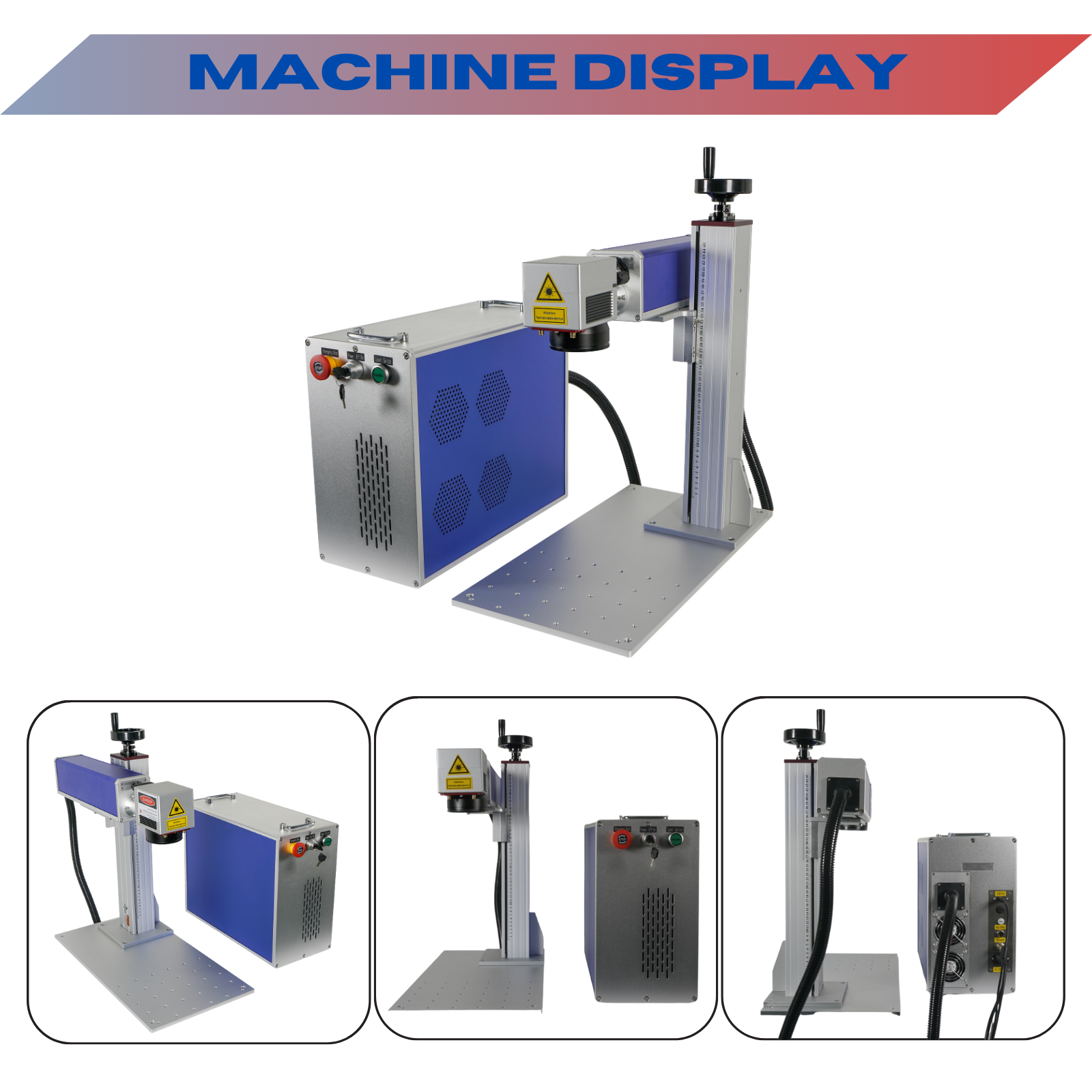

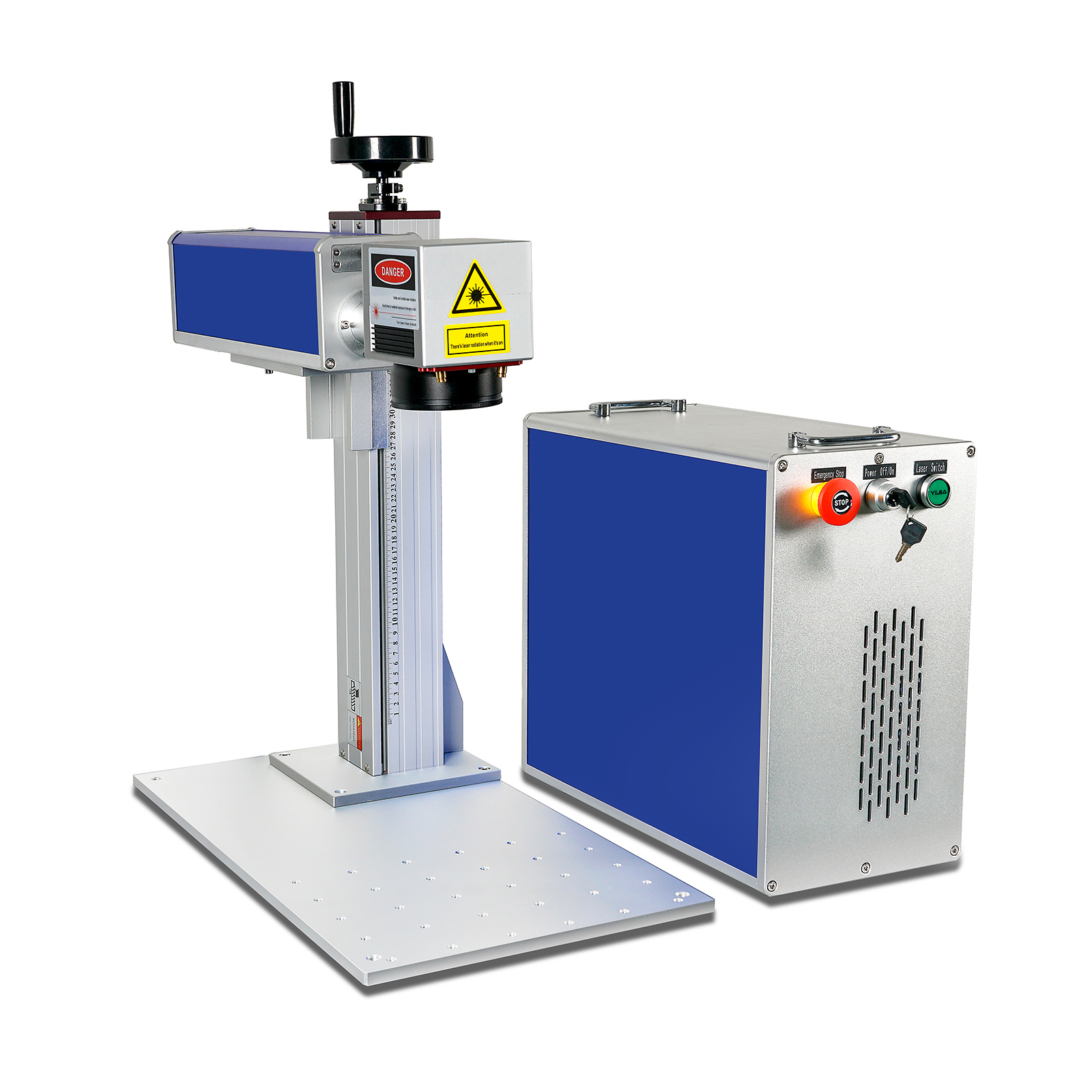

MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis

SKU: FLM-FT-21R-US
1.Local US Technical Support and 24 Hours Customer Service. 2.Lifetime Free Technical Support and Easy-to-Follow beginner courses. 3.$50-$300 Cash Back For Customer Feedback 4.More Discount for regular customers
213 Sold
$0.00 $2,899.00
GET $5.00 OFF ON ORDERS OVER $100.00
Get it
280XND2A
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    CN
    US
    EU
  • LASER POWER:
    20W
    30W
    50W
  • SHIPPING FROM:
    China/5-9 Days
    USA Warehouse/3-5 Days
    EU Warehouse/5-7 Days
Quantity:
-
+
Add to Favorites (612)
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
1/1
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • MCWlaser 20W/30W/50W Raycus Laser Engraver Split Type Fiber Marking Machine With 8.7” X 8.7“ Working Area & D80 Rotary Axis
  • Description
  • Payment Method
  • Shipping & Tax
  • FAQ

The Raycus Fiber Laser Engraver Marking Machine marks most metals and some non-metals. This advanced machine boasts a red light positioning focus finder, ensuring pinpoint accuracy and efficient setup by guiding the laser's focal point with precision. Powered by a high-performance galvanometer system, it delivers rapid and accurate results, with an astounding marking speed of up to 7000mm/s. Utilizing the user-friendly Ezcad2 software, operators can easily customize and create intricate designs, barcodes, QR codes, logos, and alphanumeric characters, adding a touch of personalization to their products.
What's more, the Raycus Fiber Laser Engraver comes with a 2-year warranty, providing peace of mind and demonstrating the manufacturer's commitment to quality and reliability. Whether for industrial manufacturing, electronics, jewelry, or medical devices, this machine is an invaluable tool for businesses seeking efficiency, precision, and durability in their marking and engraving operations.

★ Easy and convenient operation.

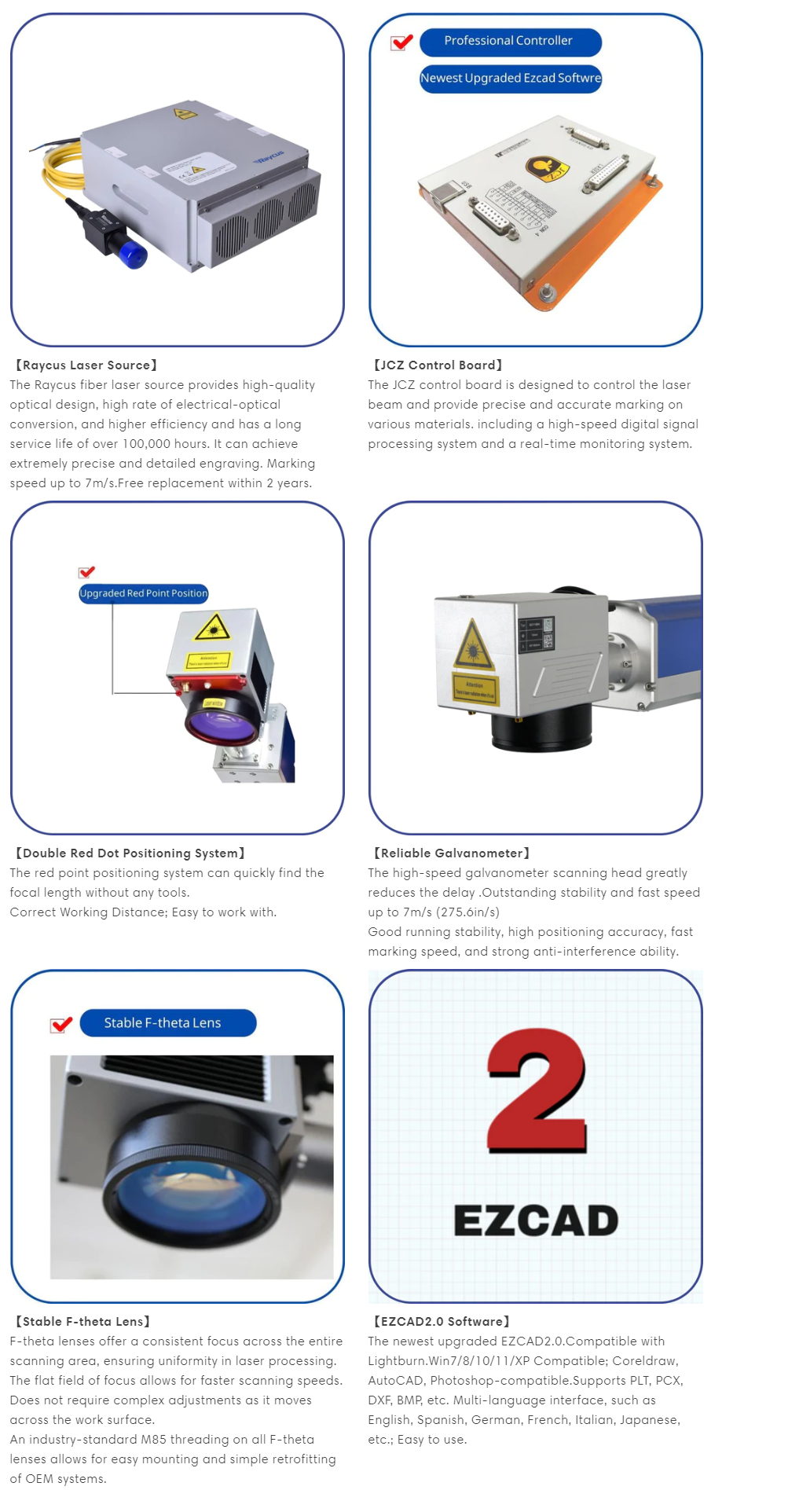

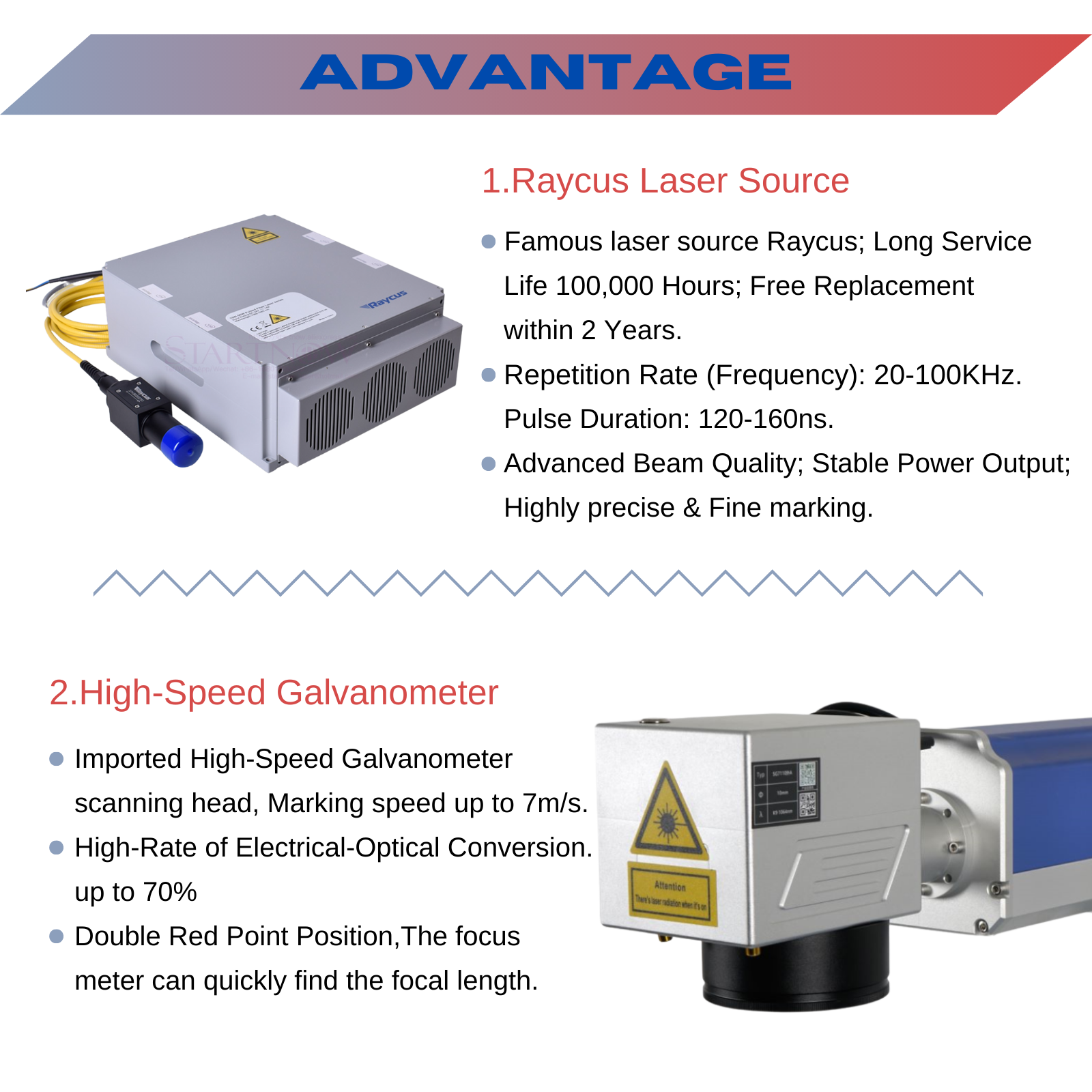

★ Imported high-speed Galvanometer fast focus, double red light device easy focus.
★ Mainly used for marking and engraving of metal materials and some non-metal materials.
★Certified: FDA and CE
★ 2-Year Warranty and Lifetime Free Technical Support.
★ Door to door service with free delivery.

Features

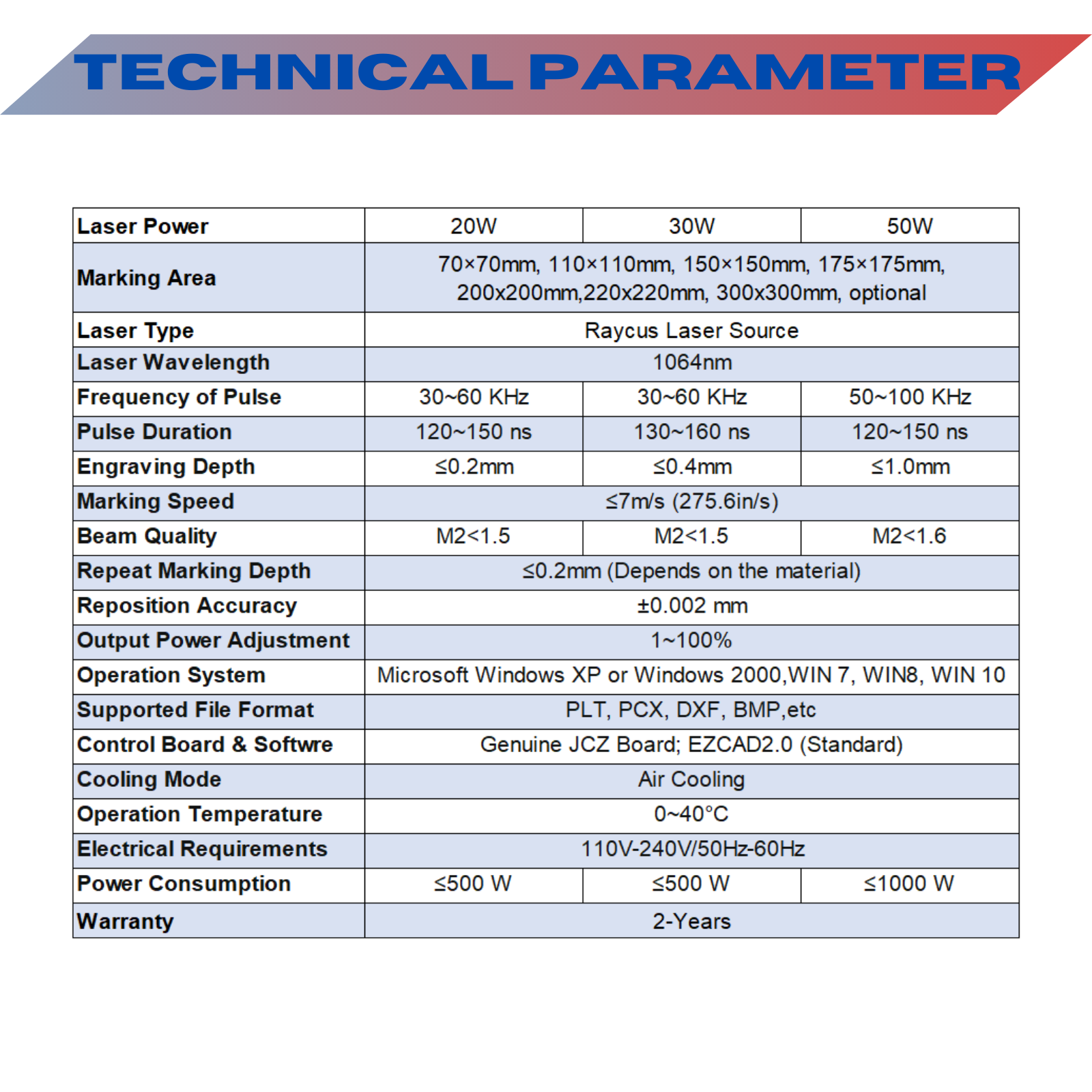

Technical Parameter

Laser Power 20W 30W 50W
Marking Area 220x220mm by default,50x50mm, 70x70mm,110×110mm,150×150mm,175×175mm
200x200mm,300x300mm,optional
Laser Type Raycus Laser Source
Laser Wavelength 1064nm
Frequency of Pulse 30~60 KHz 40~60 KHz 50~100 KHz
Pulse Duration 120~150 ns 130~160 ns 120~150 ns
Engraving Depth ≤0.2mm ≤0.4mm ≤1.0mm
Marking Speed ≤7m/s(275.6in/s)
Beam Quality M²<1.6 M²<1.5 M²<1.6
Repeat Marking Depth ≤0.2mm(Depends on the material)
Reposition Accuracy 土0.002 mm
output Power Adjustment 1~100%
peration System Microsoft Windows XP or Windows 2000,WIN7,WIN8,WIN 10,WIN 11
Supported File Format PLT, BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, ETC.

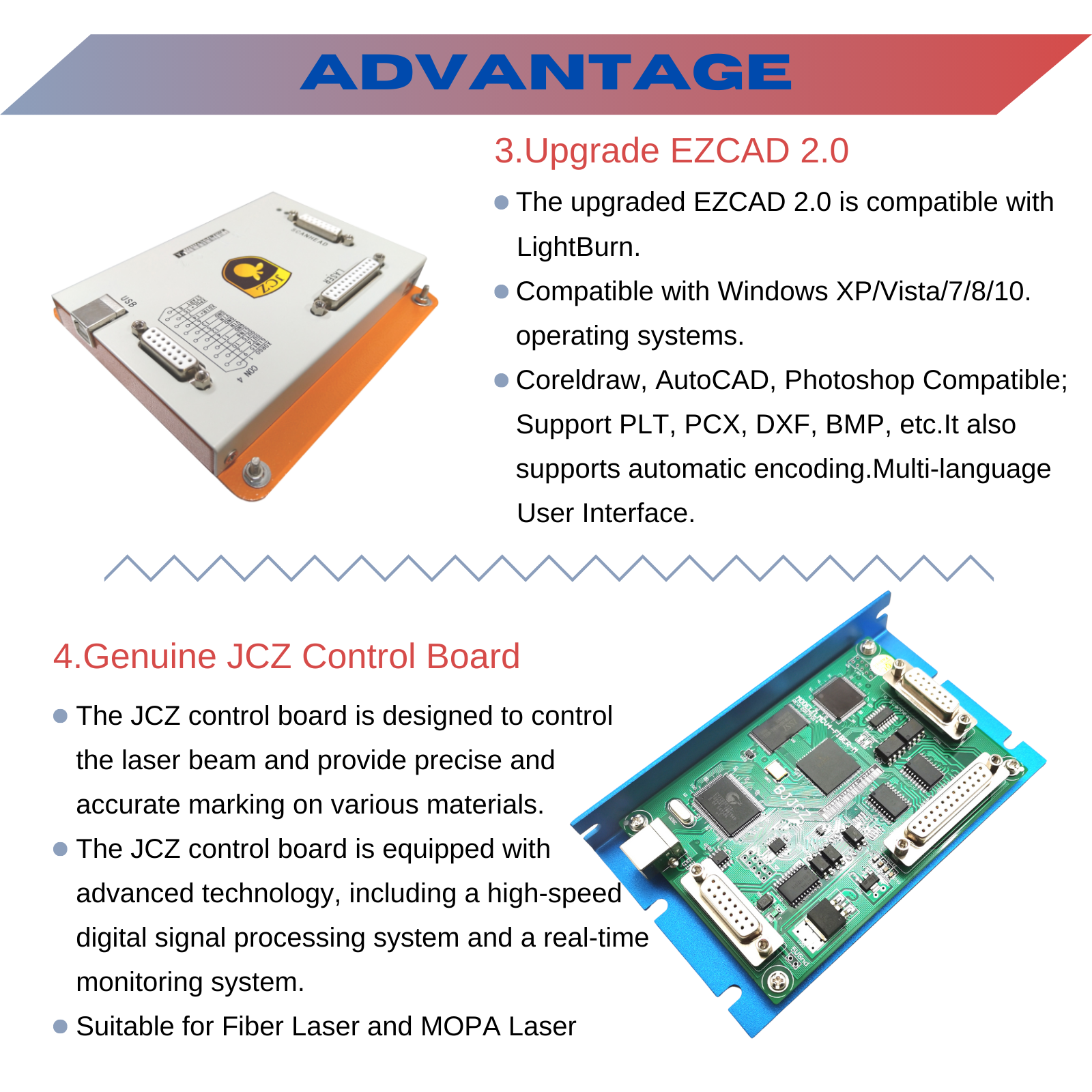

ontrol Board & Softwre Genuine JCZBoard;EzCAD2.0(Standard)
cooling Mode Air Cooling
peration Temperature 0~40°℃
Electrical Requirements 110V-240V/50Hz-60Hz
Power Consumption <500W <500W <1000W
Warranty 2-Years

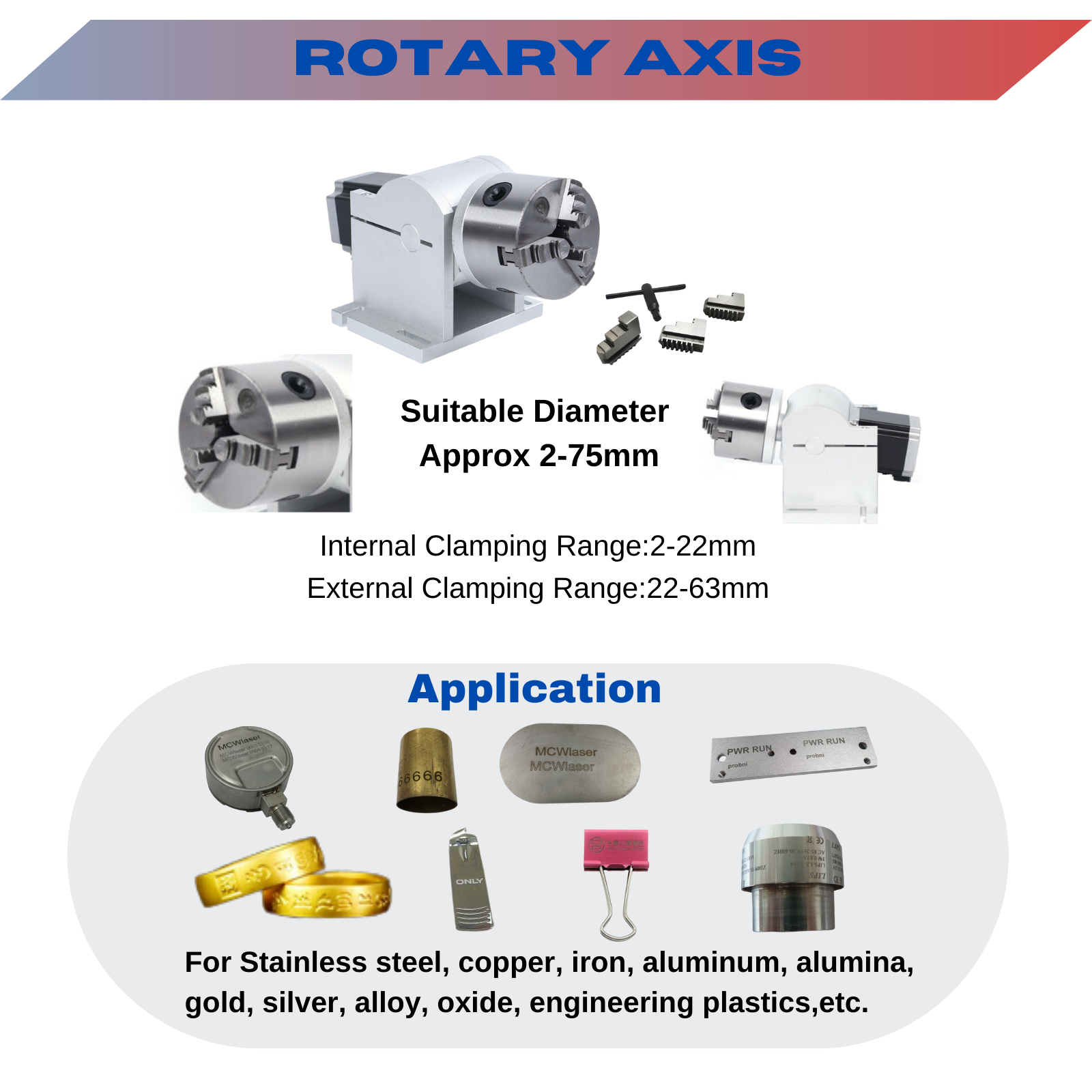

Parameter

  • 57/76 Stepper motor: 1m long cord, 4 pins and 1 spare spring.
  • 180° rotary positioning;elevation angle 45°/ 90°

Feature

  • Stainless steel material.
  • Synchronous wheel drive;Effectively eliminate jitter.
  • Rotary spring clamping, improve workeffciency
  • Use aviation plug fits various board card

Optional Dia



Application

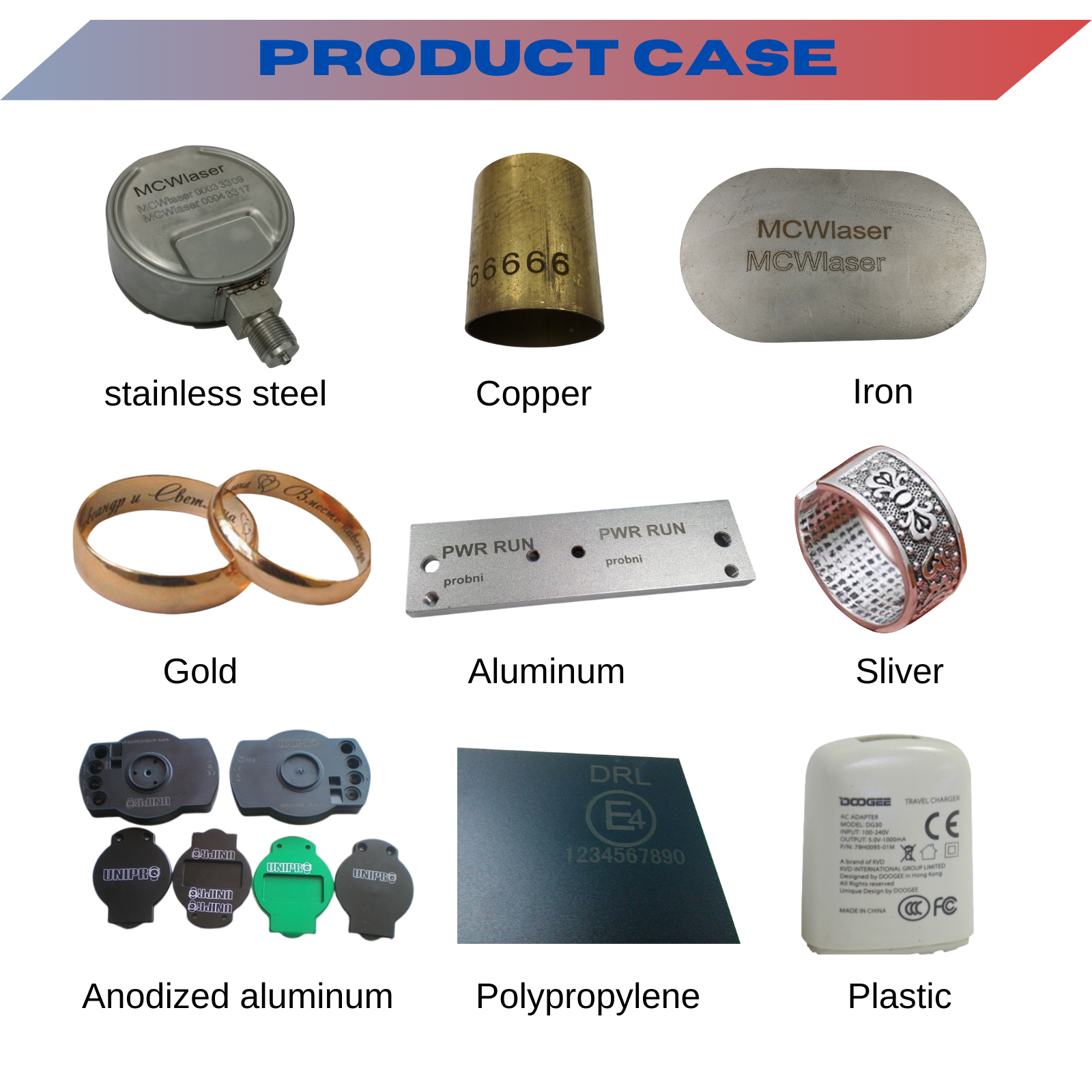

Both for Industry and business; Mainly used for metal material (typical: Steel, stainless steel, silver, copper, alloy, aluminum, etc); part non-metal material (typical: ABS, PVC, PES, plastic, ceramic, leather, etc. )
