MCWlaser 200/300W Pulse Laser Cleaning Machine Handheld Removal Cleaner for Metal rust aluminum alloy oxide layer Removal

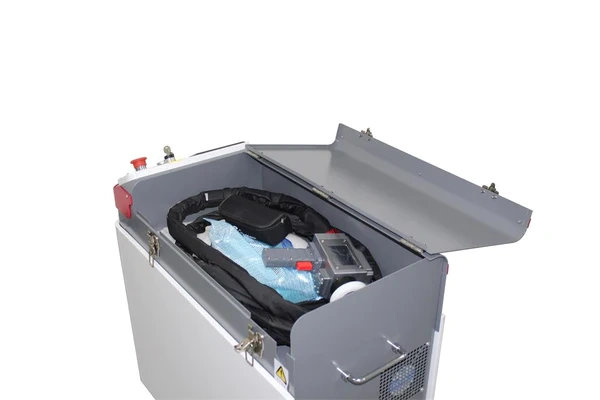

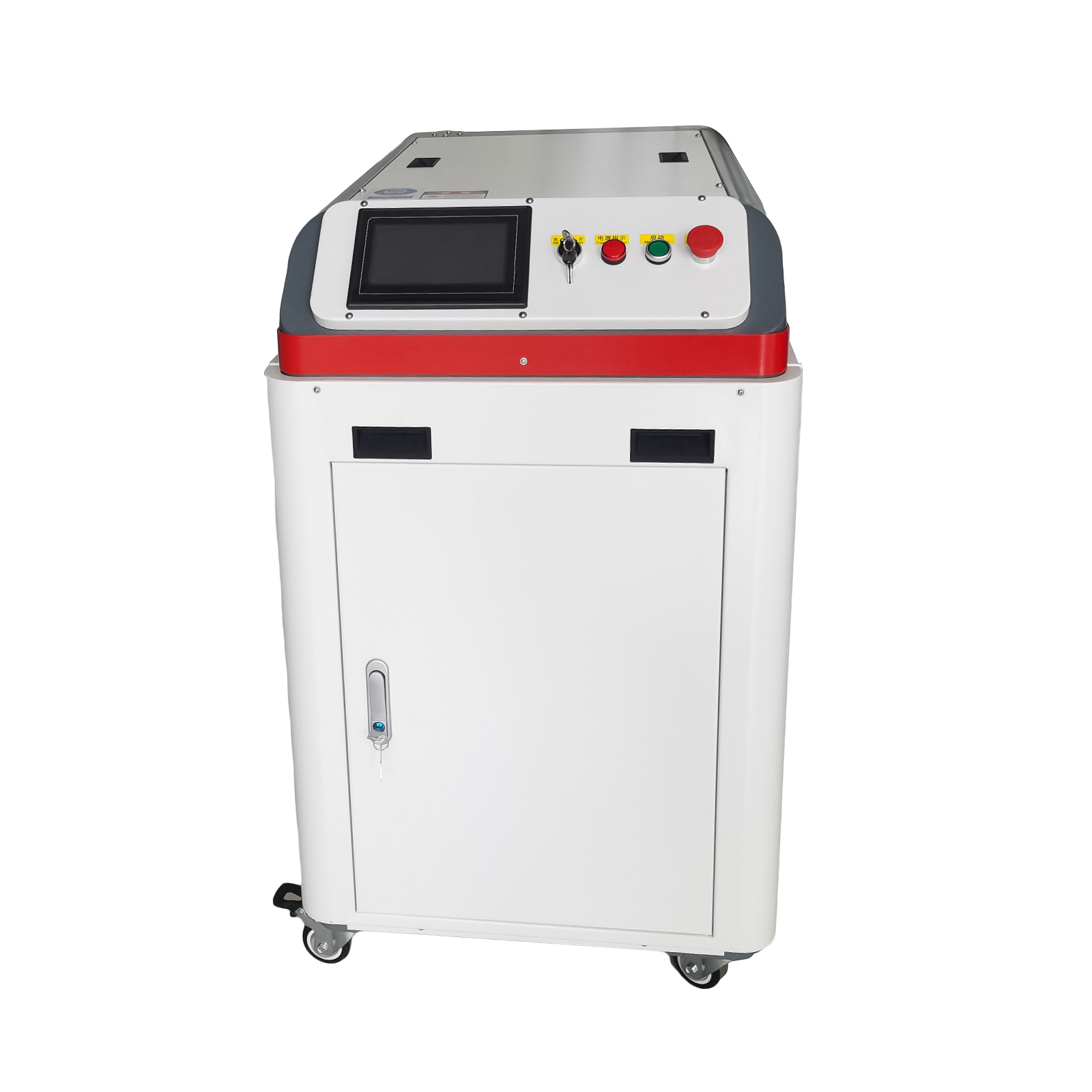

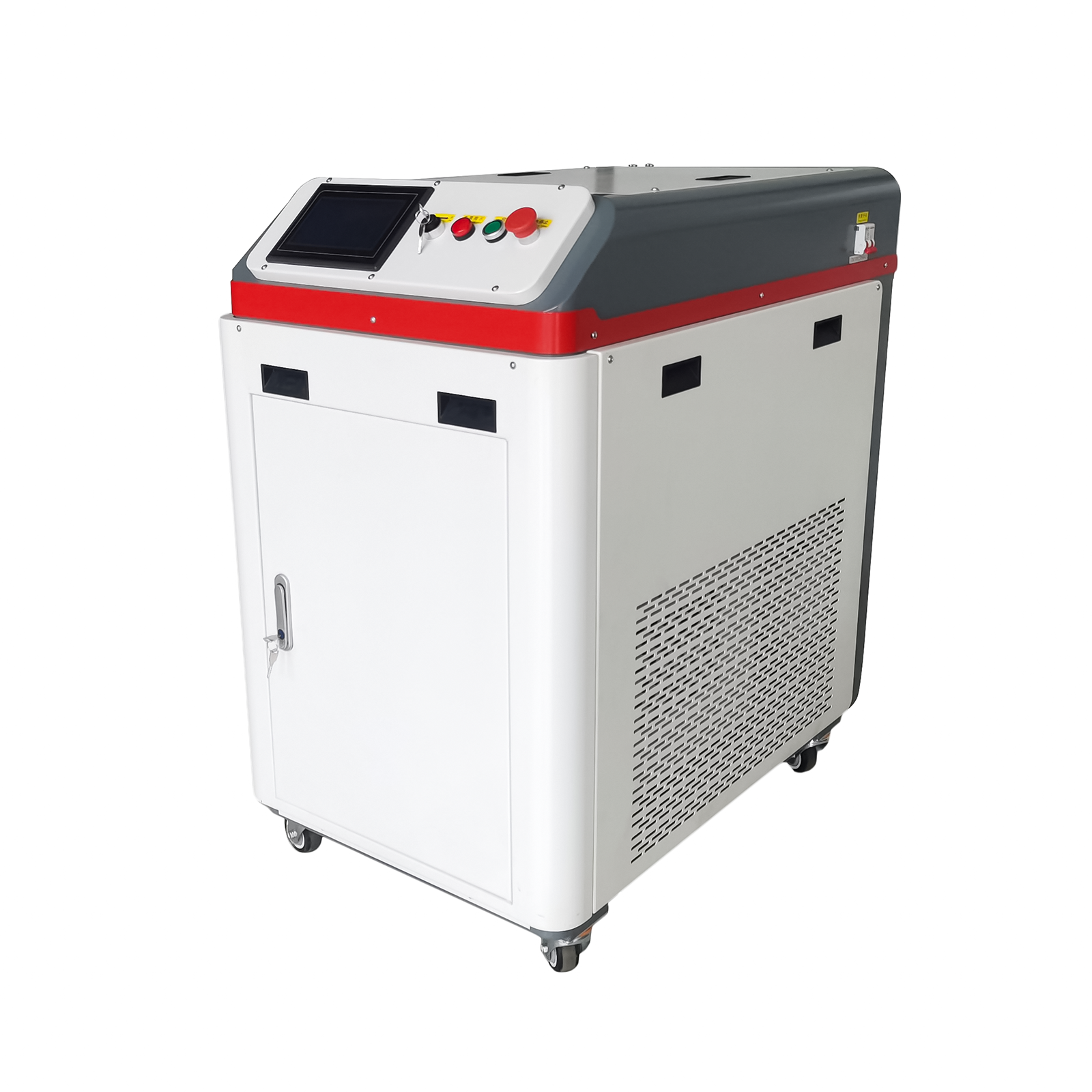

The equipment adopts a wheeled cabinet structure, making it easy to move. The upper part of the cabinet has a unique storage box design, which is convenient for storing cleaning heads, cables, and various accessories. The air-cooled structure makes the equipment easy to use and easy to maintain. The cleaning system provides 8 scanning modes (customizable) and supports 9 languages (customizable). The cleaning head is compact and lightweight, with a weight of<1.2kg. Support Modbus communication protocol for easy automation control. Single mode pulse laser beam has good quality, high peak power, controllable cleaning accuracy, and wide applicability. It can be used for cleaning surface rust, oxides, coatings, and other attachments of metal materials (steel, aluminum, copper, etc.).

Main Parameter

Laser power：200W/300W
Laser type: single mode pulse
Cooling method: Air cooling
Maximum monopulse energy: 1.5~2mJ
Scan mode: 8 scan modes
System language: switch between 8 languages (customizable)
Overall dimensions (length, width and height) : About 1055mm*623mm*1105mm
Dimension after packaging (length, width and height) : About 1230mm*750mm*1280mm
Machine weight: About 170KG
Cleaning head weight: < 1.25Kg

Product Advantages

1. Widely used, suitable for various industrial processing scenarios
2, small laser cleaning head, light and easy to take, can work for a long time
3, trolley design, easy to move, electricity can run
4, non-contact cleaning, no consumables, no damage, no pollution
5, non-contact cleaning, no damage to the parts matrix, 360 degrees no dead Angle, precise cleaning without consumables

Parameter

(3)Set interface

Language switch: Set the system language mode, currently supports 9 kinds including Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, etc.;

(4)Operation interface:

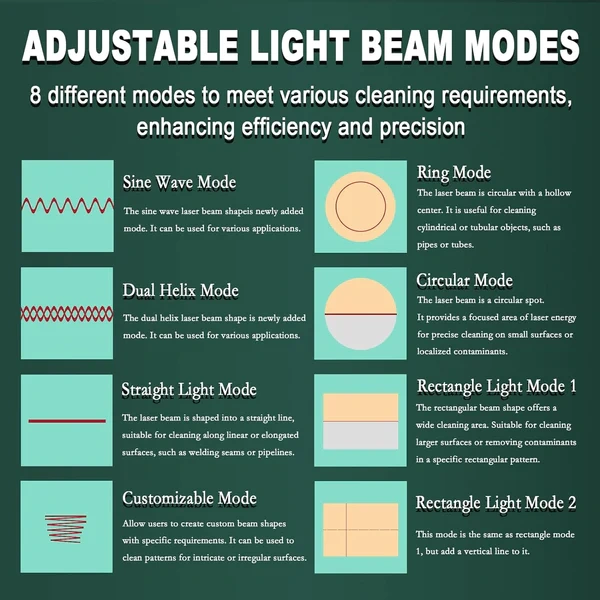

The operation interface provides 8 cleaning modes, which can be switched by clicking the scanning mode option on the interface ( circular switching): Linear Mode, Rectangular 1 Mode, Rectangular 2 Mode, Circular Mode, Sine Mode, Helix Mode, Free Mode and Ring.

The database number can be selected on the operation interface of each mode,14 and the laser cleaning parameters can be displayed and set, including: laser power,   laser frequency, pulse width (valid for pulsed laser) or duty cycle (valid for continuous laser), scanning mode, scanning speed , the number of scans and the scan range (width, height).

Application

Application scenarios: It can be widely used to remove all kinds of attachments (paint/rust/oil pollution/residue, etc.) on metal and non-metallic surfaces.
Its high energy density is particularly suitable for the cleaning of high-threshold attachments such as aluminum alloy oxide layer/black dense iron oxide.
