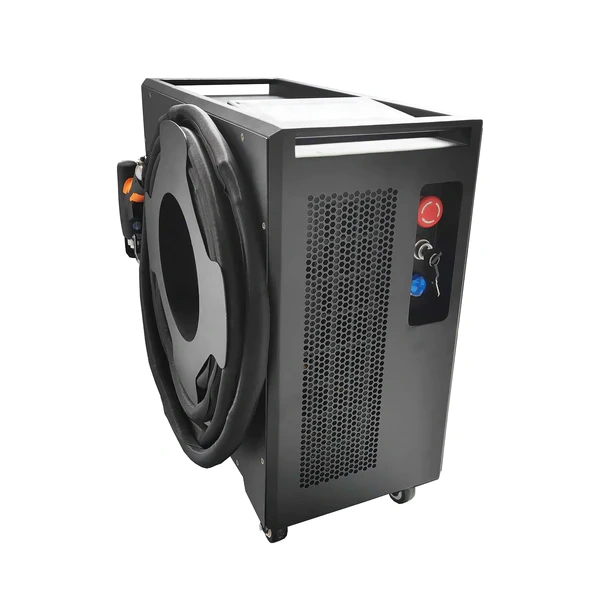

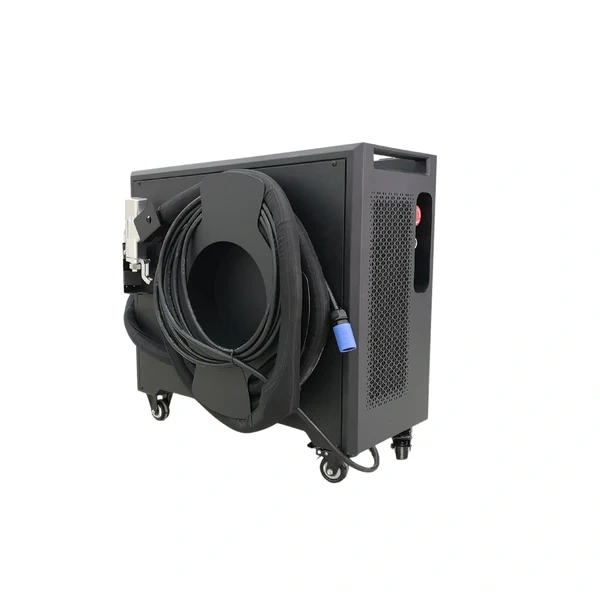

This laser welding machine is designed to be lightweight and compact, making them easy to carry to different job sites or within a workshop.These machines are user-friendly and require minimal setup compared to traditional welding equipment. This makes them suitable for both professionals and beginners.
It provides precise control over the welding process, allowing for fine and intricate welds in various materials. Handheld laser welding machines can often perform welding tasks faster than traditional methods, which can lead to increased productivity. Laser welding is generally safer for operators, as it reduces exposure to harmful fumes and radiation.
Portability: Compact and lightweight, making it easy to carry and operate in various work environments.
Ease of Use: Designed with user-friendly touch screen controls and intuitive interfaces. Making it easy for operators to learn and operate without extensive training.
High Efficiency: Fast and Firm Welding, 2-10 times faster than other welding methods. Focused laser beam concentrated in a small area welds materials quickly and precisely.
Cost-effective: High electro-optical conversion efficiency and long laser life, high output power, excellent beam quality,and low cost.The welds are smooth and beautiful.It saves about 80%~90% electricity than argon arc welding.
Versatility: Suitable for tailor welding, stack welding, internal and external fillet welding, arc welding, irregular shape welding, etc.
It is suitable for including metals and alloys, allowing for a wide range of welding applications in industries such as automotive, electronics, and jewelry.
Flexibility: The machine offers flexibility in terms of welding positions and angles, allowing for welding in tight or difficult-to-reach spaces, improving accessibility and overall welding capabilities.
| Model | FWM-LX-1000H | FWM-LX-1500H |
| Laser power | 1000W | 1500W |
| Working mode | Continuous or modulate | |
| Laser wavelength | 1064NM | |
| Beam quality | M2<1.1 | M2<1.2 |
| AC110v or VAC220V±5% | ||
| Power supply | 50/60Hz 10A | 50/60Hz 16A |
| Power | ≤2300W | ≤3600W |
| Cooling system | Air cooling | |
| Fiber length | 6M; 10M | |
| Fiber length | Customizable | |
| Temperature range of working environment | 5~38 ℃ | |
| Welding thickness range | Max 2mm | Max 4mm |
| Applicable materials | Carbon steel、stainless steel、galvanized sheet, etc | |
| Weld requirements | <0.2mm | |
| Welding speed | 0~120 mm/s | |
| Size of machine | 650x330x600mm | |
| Net weight of machine | 48kg | |
| Size of wire feeder | 560×250×350mm | |
| Net weight of | 15kg | |

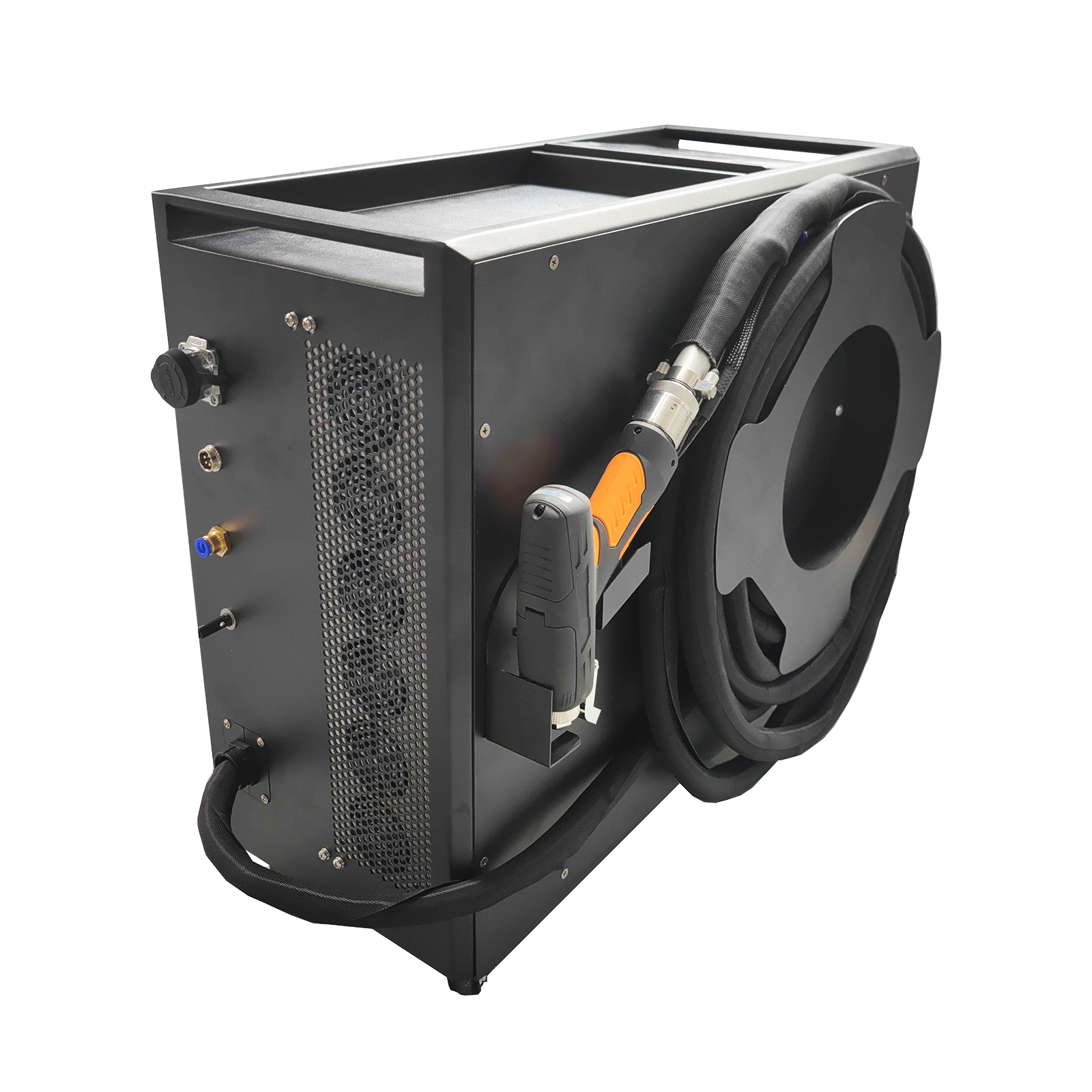

Hand-held welding head is light and flexible, which can realize welding of any part of the workpiece
Easy to handle and suitable for welding in tight spaces or for intricate welding tasks. Good maneuverability in various welding scenarios.

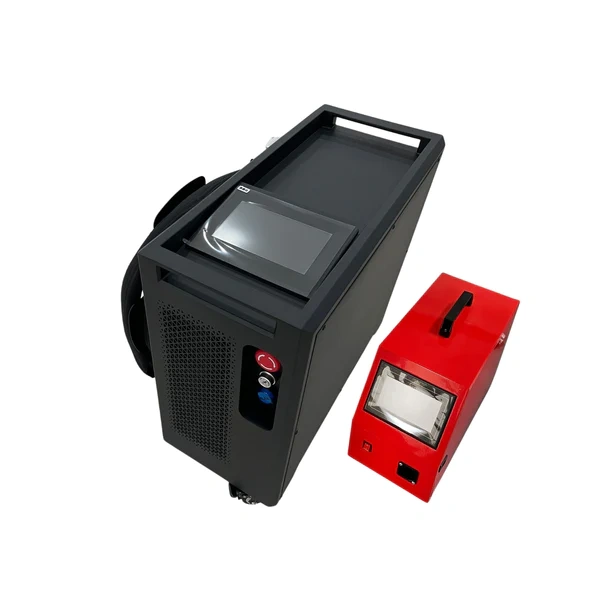

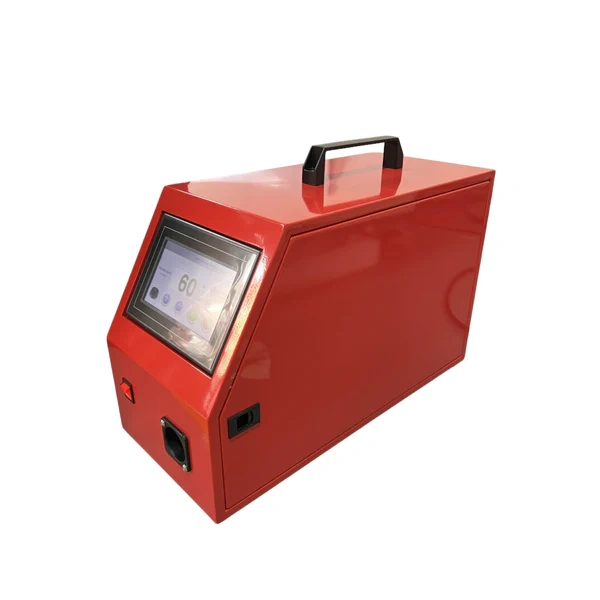

LED touch screen display and four-wheel dual-drive wire feeding mechanism.

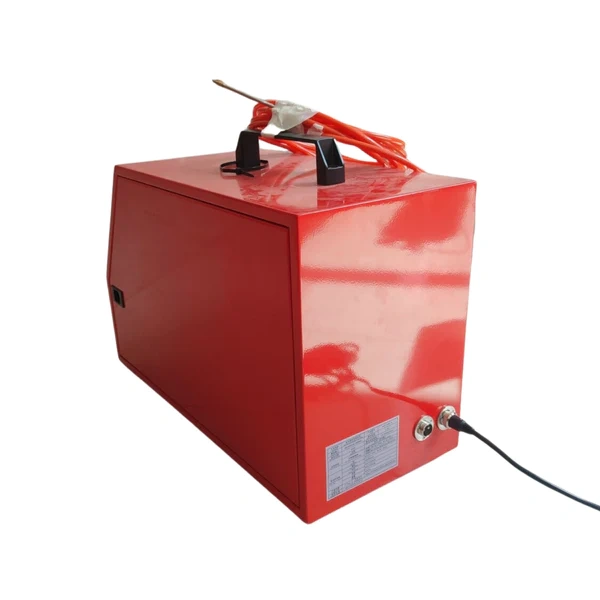

The wire feeding speed is 25-600cm/min (adjustable), and supports continuous wire feeding mode and pulse wire feeding mode.

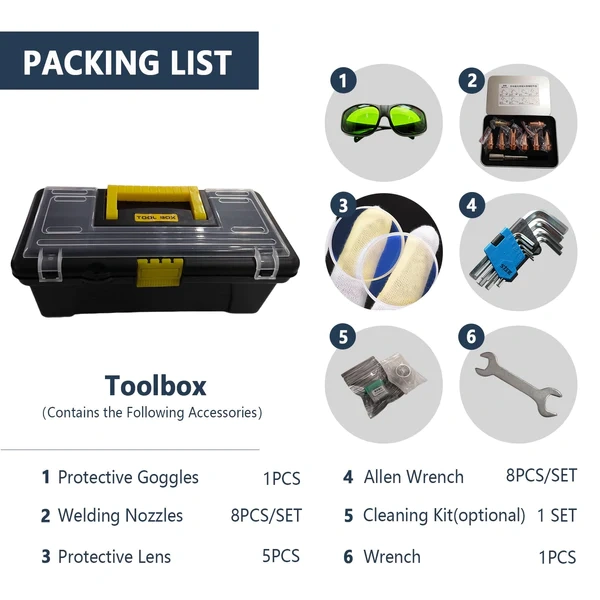

Laser welding heads can be fitted with a variety of nozzles. These options allow for flexibility in welding different products and handling various materials.Making it suitable for a wide range of materials and welding needs.
Efficient Raycus Laser Source,achieving faster and more precise results than TIG/MIG welding.
Can be customized according to customers
Adopts industrial LED touch screen and intelligent operating system, Supports simple operation mode,easy to learn and easy to operate. New users can quickly welding.18 languages available.
The handheld laser welding machine has a wide range of applications across various industries. Some common applications include:
Automotive Industry: The mini handheld laser welding machine is used for welding car body components, exhaust systems, fuel tanks, and other automotive parts, providing precise and reliable welds.
Electronics Industry: It is used for welding electronic components, such as connectors, circuit boards, sensors, and batteries, ensuring high-quality and durable connections.
Jewelry Making: The mini handheld laser welding machine is used in the jewelry industry for intricate welding tasks, such as repairing jewelry, attaching clasps, and joining delicate components without damaging the surrounding areas.
Medical Device Manufacturing: It is employed in the production of medical devices, such as surgical instruments, implants, and dental tools, enabling precise and controlled welding for critical applications.
Aerospace Industry: The mini handheld laser welding machine is utilized for welding aerospace components, including turbine blades, engine parts, and structural elements, ensuring strong and reliable joints with minimal heat-affected zones.
