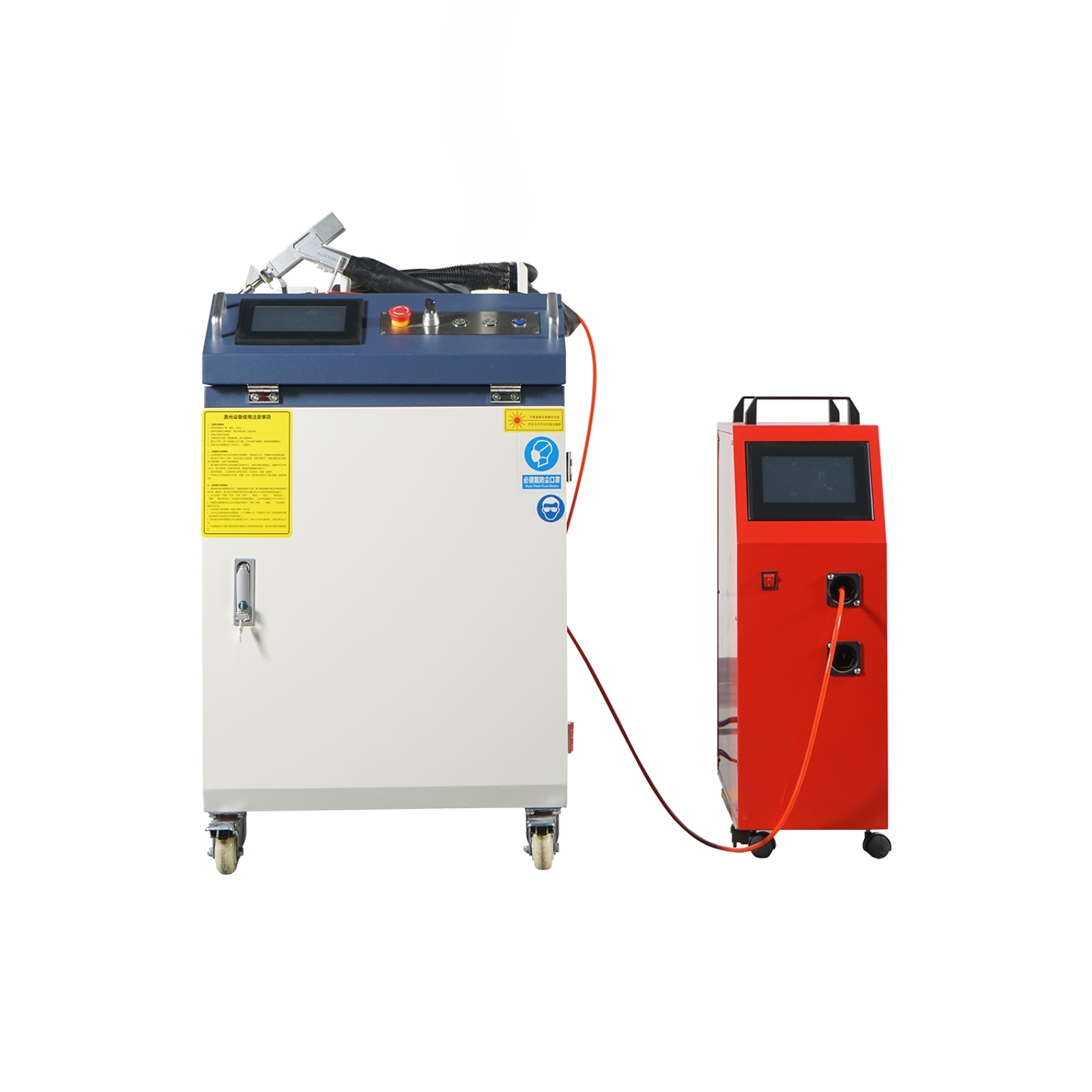

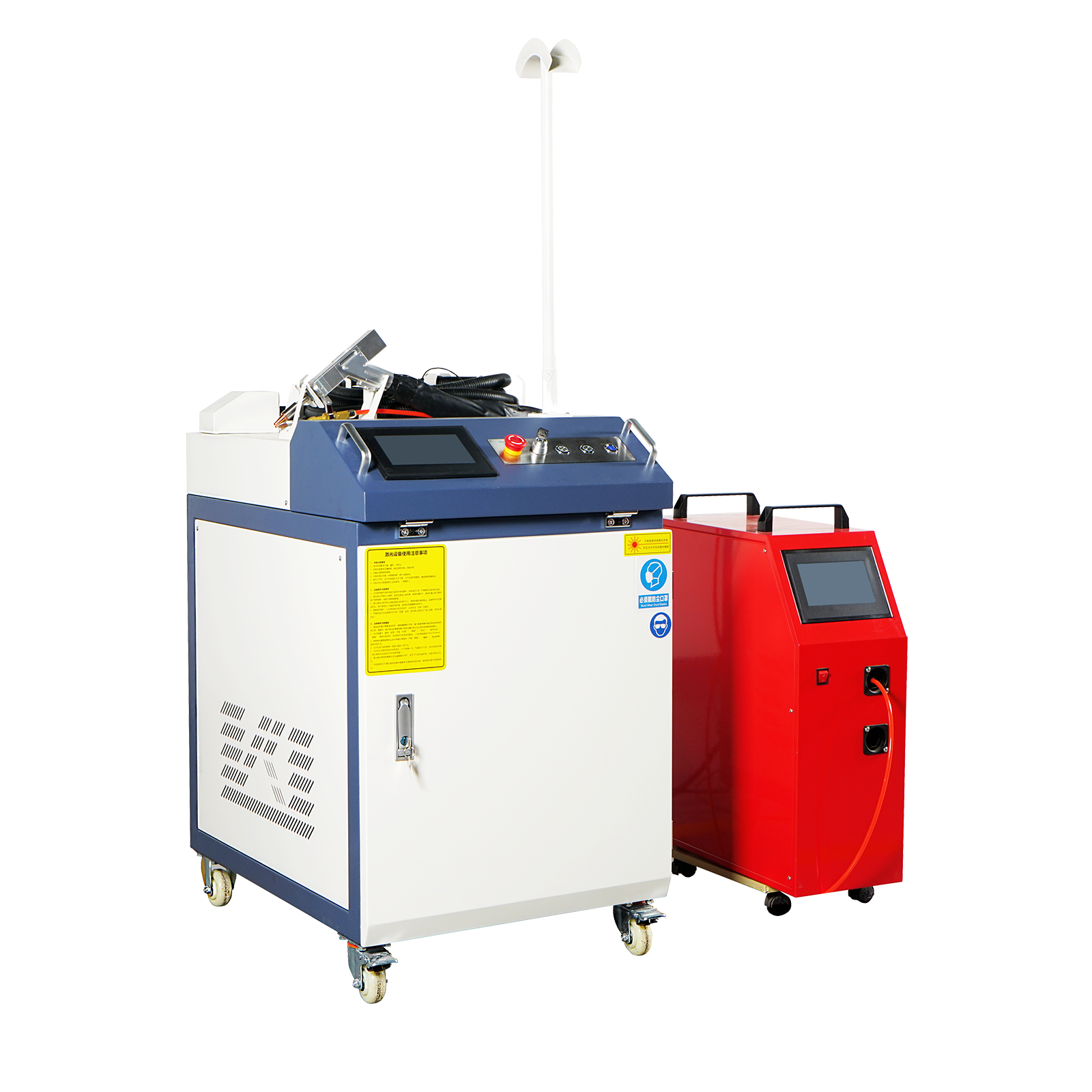

MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function

SKU: HWM-1000
0 Sold
$0.00 $7,839.00
GET $5.00 OFF ON ORDERS OVER $100.00
Get it
280XND2A
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    CN
  • Power:
    1000W
    15000W
    2000W
Quantity:
-
+
Add to Favorites (0)
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser welding machine
  • MCWlaser 1000W 1500W 2000W Handled Fiber Laser welding machine
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser welding machine
  • MCWlaser 1000W 1500W 2000W Handled Fiber Laser welding machine
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser welding machine
  • MCWlaser 1000W 1500W 2000W Handled Fiber Laser welding machine
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser welding machine
  • MCWlaser 1000W 1500W 2000W Handled Fiber Laser welding machine
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
1/1
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser welding machine
  • MCWlaser 1000W 1500W 2000W Handled Fiber Laser welding machine
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser welding machine
  • MCWlaser 1000W 1500W 2000W Handled Fiber Laser welding machine
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • MCWlaser 2 In 1 Head 1000W 1500W 2000W Handled Fiber Laser Welding Machine with Weld Seam Cleaning Function
  • Description
  • Payment Method
  • Shipping & Tax
  • FAQ

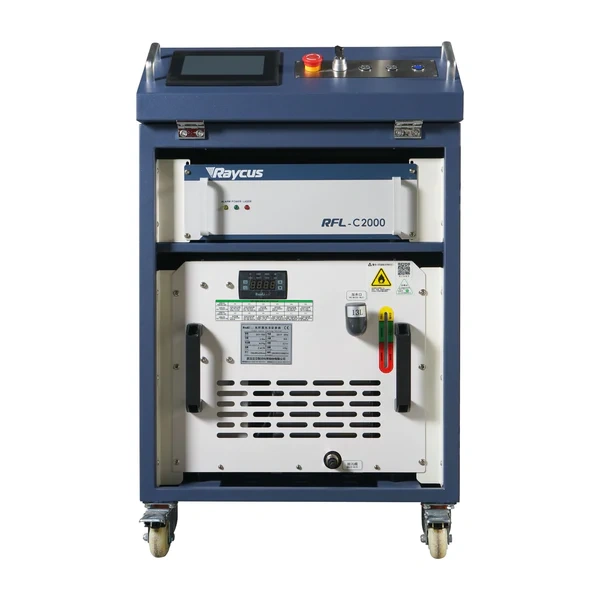

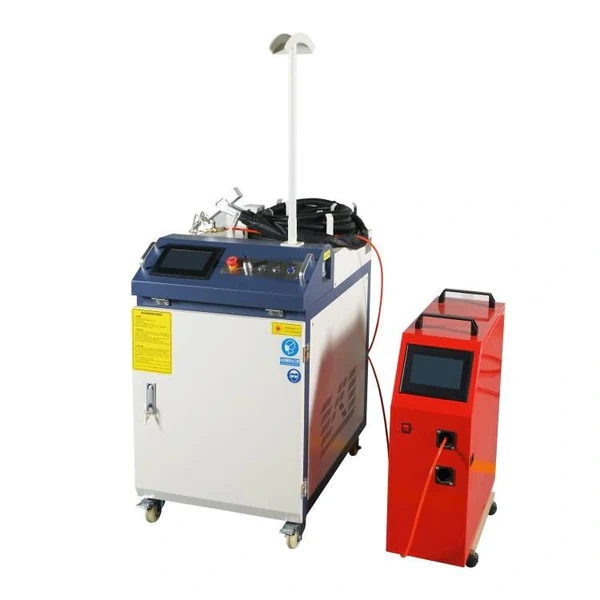

Handled Fiber Laser welding machine


Description:
Replace the fixed optical path with a handheld welding gun, mainly for laser welding of long-distance and large workpieces. When welding, the heat affected area is small, which will not cause the workpiece to deform, blacken, or have traces on the back. Moreover, the welding depth is large, the welding is firm, the melting is sufficient, and there is no depression on the convex part of the molten material in the molten pool and the base structure.

Parameter:
Laser Power 2000W
Laser wavelength 1080+10nm
Welding Speed 0-120mm/sec
Cable Length  10 meter (20 meter optional)
Power adjustment range 10-100%
Spot adjustment range 0.2-6mm
Weld depth 4mm
Visual Positioning Visual Positioning: Red dot
Gas Assist:  Nitrogen/Argon
Cooling Methed Water cooling
Power consumption 9KW
Operating Voltage 220-240V AC 50Hz/60Hz
Machine Size (L*W*H)mm 1360*670*1000mm
Machine weight 185KG


Features:
1. High energy density, low heat input, small heat distortion, narrow and deep melting zone and heat affected zone

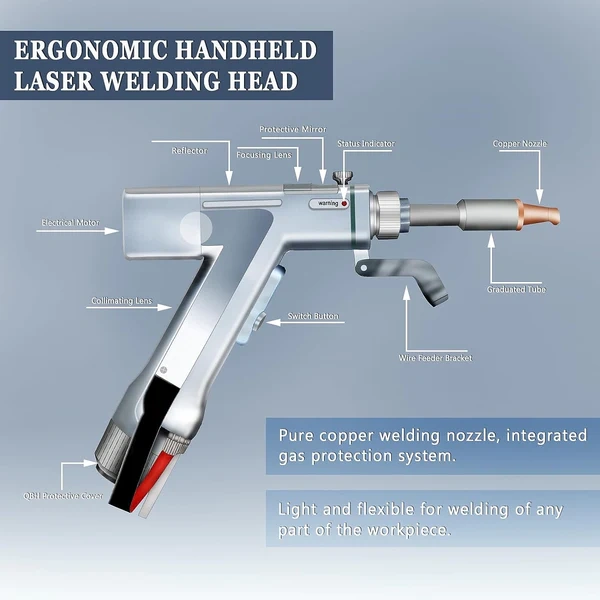

2. The hand-held welding torch head is flexible, and the optical fiber is up to 10 meters, which is convenient for outdoor welding, and can weld large workpieces at long distances.
3. The operation mode of the hand-held welding head allows welding the workpiece at any angle and any position. Intelligently switch dual light paths to distribute energy evenly according to different time and different light.
4. Complex welding methods and multiple welding processes, no need for welding station, small space, diversified welding products, flexible product shape, spot welding, seam welding, stack welding.
5. High welding efficiency, thin welding seam, large penetration, small taper, high precision, smooth appearance, smooth, beautiful, no need to grind or grind the workload
6. Simple operation, easy to learn, no professional welding required
7. Low use cost, low energy consumption, less maintenance, environmental protection and energy saving
8. Difficult-to-weld materials such as aluminum alloy can be easily welded by using the swing welding head

Shipping:
1.The listing price doesn’t include the shipping cost.
2. The ocean or air transport can be chosen. Please contact with us to check the exact cost according to your shipping address or sea or air port.
3. The door to door service by ship or air can be provided,please contact with us if need.

Advantages:

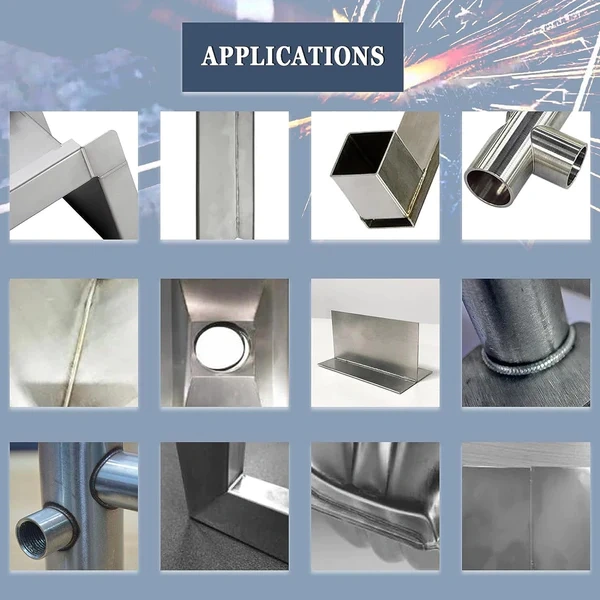

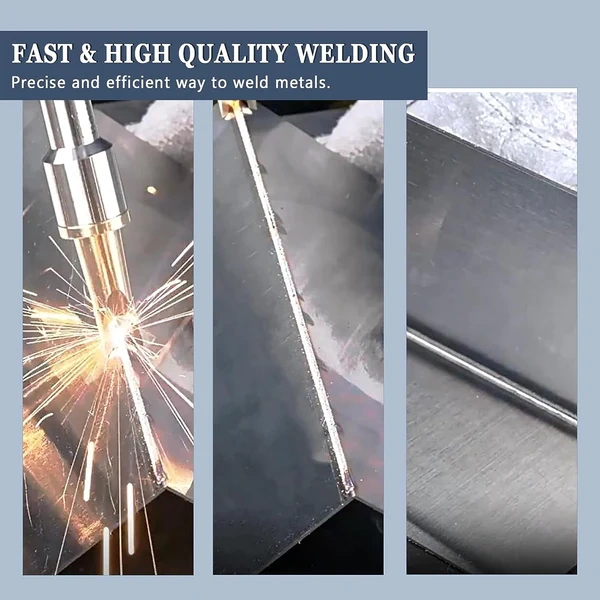

Sample Photos:

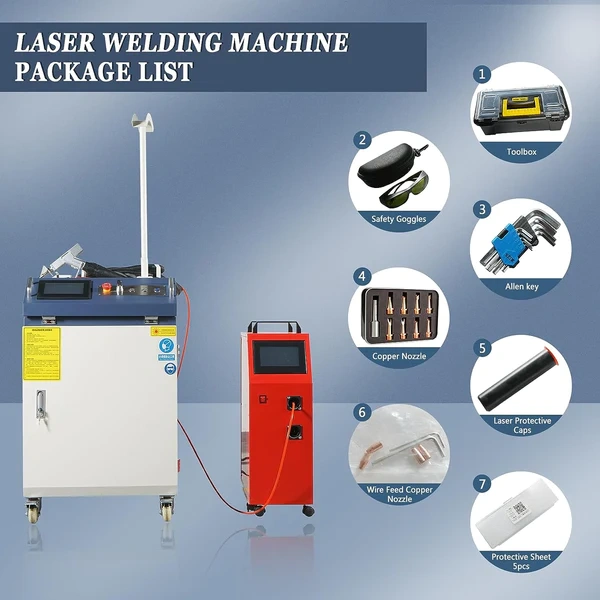

Packing List
1    Laser Welder X1 pcs
2    Wire feeding machine X1 sets
3    Protective goggles X1pcs
4    Welding gun nozzle X1 set
5    Wire feeding copper nozzle X1 sets
6    Laser protection cap X1pcs
7    Protective lens X5 pieces
8    Hexagon socket X1 sets
9    Tool box X1pcs
1.Which payment method we usually use?

a.Paypal and Paypal.me
b.Wire Transfer
c.Western Union


You may also pay directly via PayPal, we will send you the invoice /money request by Paypal directly, but we need to know your Paypal address firstly.
We can also accept the payment by  bank/wire transfer and west union if you want.


Shiping Method and Delivery Time:

1.Standard shipping / Economic transportation

2.Expedited Shipping  (by DHL/Fedex/UPS/TNT) ,door to door service.


3.The Ocean or Air transportation to sea or air port (door to door serive is optional)   can be provided.
The delivery time depend on the detail shipping address,please check the exact time and cost with us.

4 .Shipping From Overseas Warehouse:
USA Warehouse/3-5 Days
EU Warehouse/5-7 Days
AU Warehouse/3-5 Days


Customs Duty and VAT or Tax:

1).If your order was shipped from China,the pice doesn't include the import tariff duty,tax or VAT
The tariff duty,tax or VAT depend on local law and policy in difference country. The buyer need to cover the cost.
2).If your order was shipped locally,such as from US ,AU or Europe,the price includes the duty,tax or VAT. The buyer don't need to pay customs duty, tax or VAT.
3).Part of products in EU and US support PICK UP ON SITE.Please check with us about the detail if you need.

Q:If you can provide the invoice?
A: Yes,if you need the invoice,please contact with service@mcwlaser.com.
