Feature:
1. Good compatibility: It can be compatible with different brand laser tube.

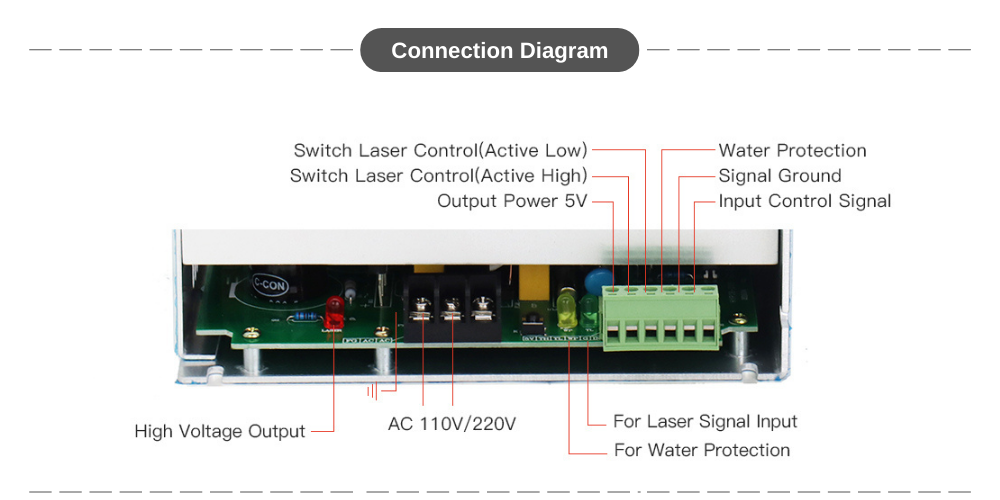

2.Simple Port Control,TTL level signals can control the laser start/stop.
3.The open circuit protection function can avoid the damage to laser power supply as laser tube faulty.
4.The "TEST" button to test output laser manually.
5. 12 months warranty.
Application:

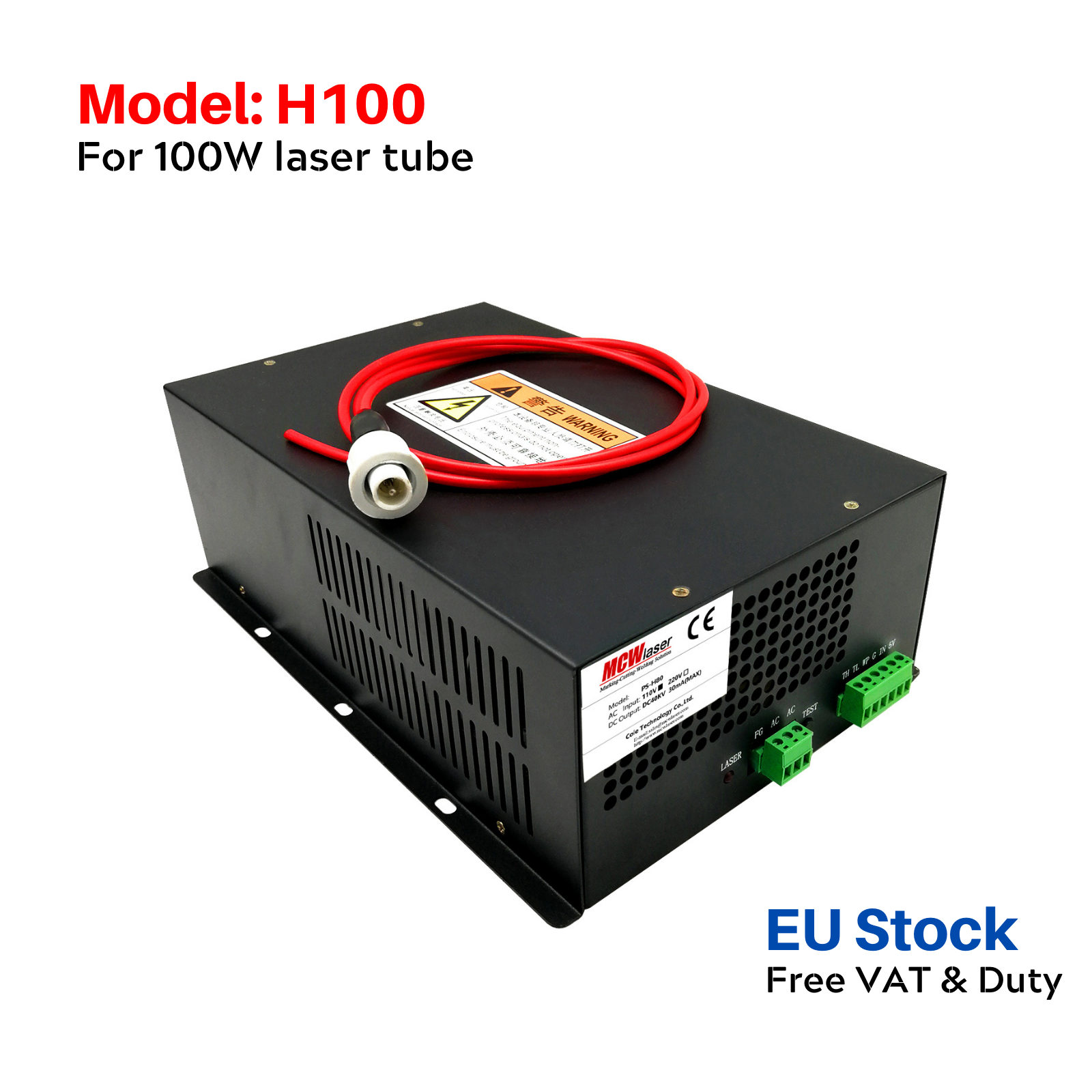

1. It was recommended for use with MCWIaser 40W 50W 60W 80W 100W 150W laser tube.
2. It can also replace or work with the other brand 40W 50W 60W 80W 100W 150W Co2 laser tube.

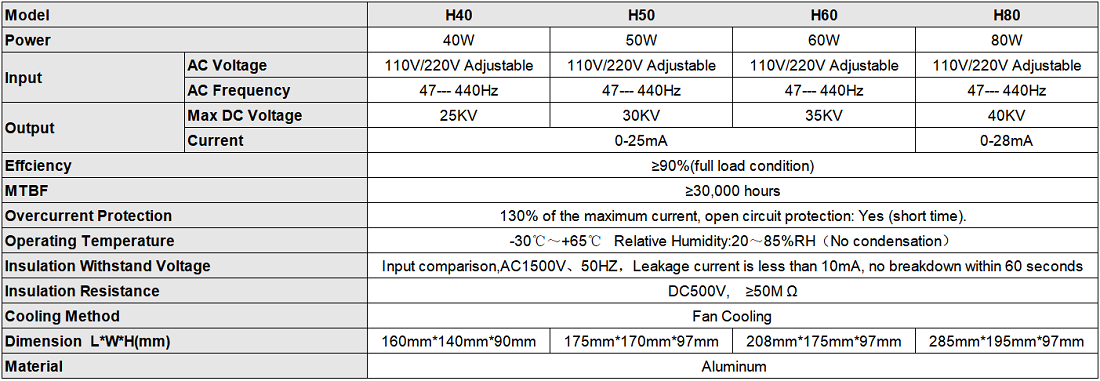

Parameter: 1. Input voltage: AC 220V+30 or AC 110V+20 (to be specified when placing order).
2. Maximum output voltage:DC40KV
3. Maximum output current: DC 38mA
4. Isolation Withstand voltage: Input-output, input-enclosure: AC2000V-10mA-60s; negative pole of output connected to enclosure
5. Protection: with well-grounded enclosure, output circuit of power supply can be open for short time (but arc between positive pole and the enclosure should be avoided).
6. Response time (from time of input being available to the output current being up to nominal value): ≤1ms.
7.TTL voltage level control: effective voltage level can be high or low through setting.
8. Protection switch: for detection of cooling water, to protect laser device; or activate with enclosure is opened.
9. Laser power adjustment:
(1) by adjusting the output current of the power supply through resistor;
(2) through PWM control (magnitude being TTL voltage level).
10.Environmental requirements: temperature (-10~ 40℃), relative humidity ≤85%.
