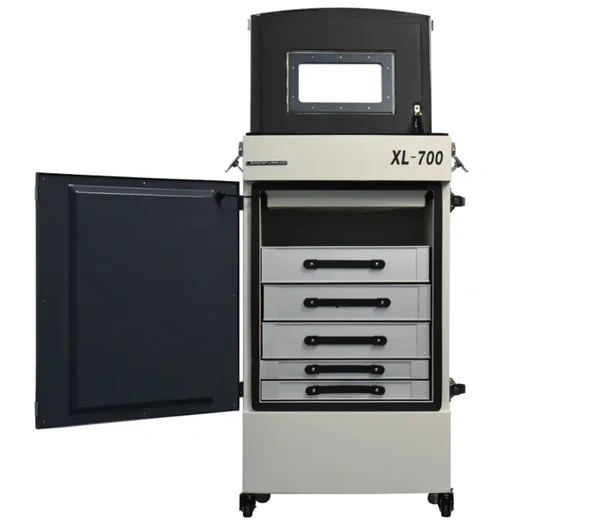

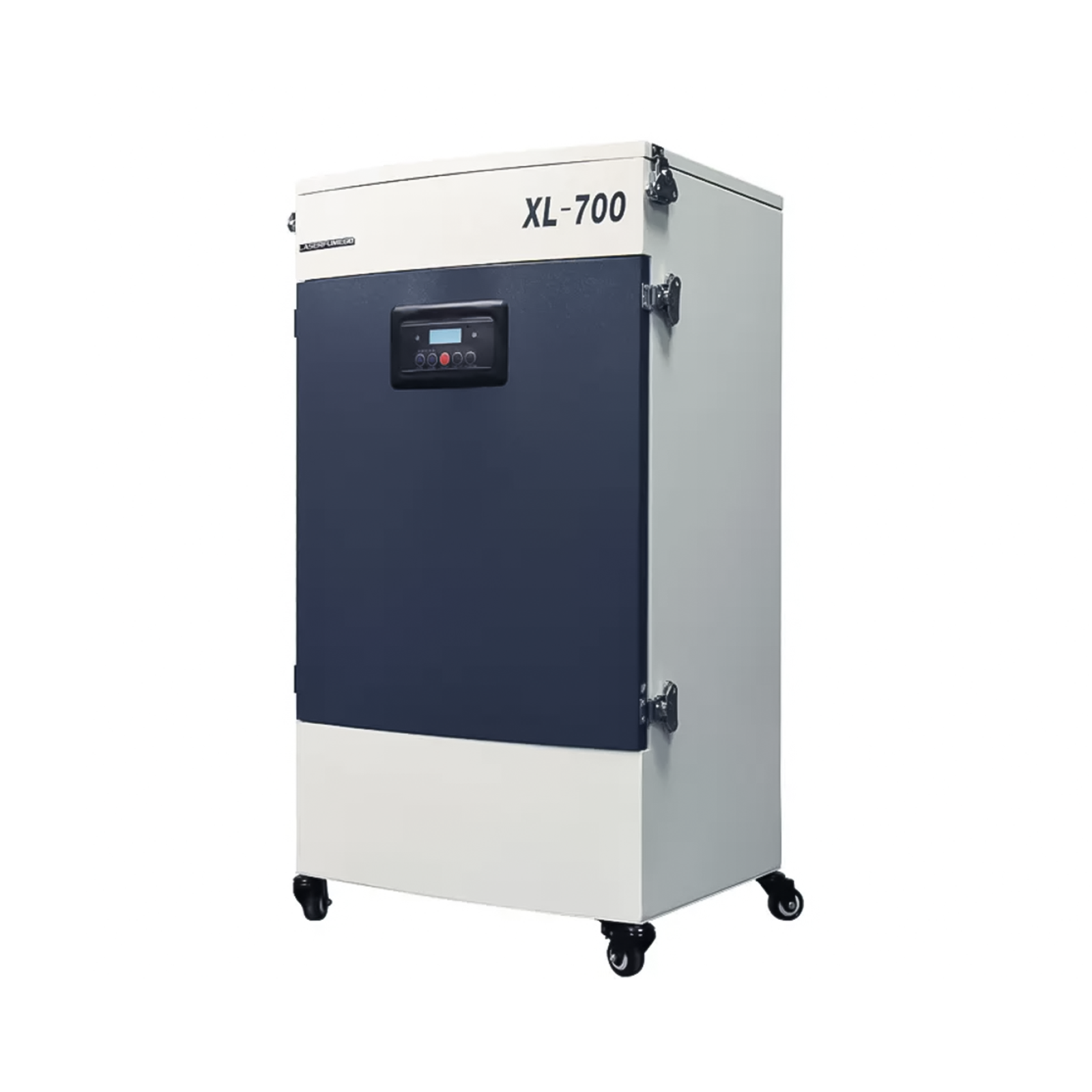

MCWlaser Smoke Purifier XL-700 Filter Fume Extraction System
PP : PP High-Efficiency Filter
T : Activated carbon filter
BQ : HEPA filter (glass)
The Smoke Purifier XL-700 stands at the forefront of air purification technology, specifically engineered to tackle heavy-duty smoke and airborne pollutants in industrial environments. Crafted for exceptional performance, this device excels at removing and neutralizing smoke particles, fumes, and harmful gases prevalent in industrial settings.
The XL-700 model is designed to handle high-capacity air cleaning, making it ideal for use in expansive factories, manufacturing plants, workshops, and other large-scale industrial facilities. Equipped with a 6-layer filtration system, including HEPA and activated carbon filters, this purifier ensures comprehensive purification, effectively capturing a wide range of pollutants and promoting a cleaner and safer working environment.
Its durability and reliability make it a standout choice for sustained use in demanding industrial conditions, meeting stringent air quality standards and contributing to a healthier and more productive workplace for employees.
Modle | Certification |
XL-700 | CE |
Power | Warranty |
700W | 1 Year |
Efficiency | Filter |
0.999 | 6 Layers |
No-load speed(r/min) | Flow Rate(m³/h) |
6500x2 | 750 |
Load wind speed(m/s) | Negative pressure(Pa) |
33 | 3000 |
Weight(kg) | Noise(db) |
70 | <75 |
Dimensions(L*W*H) | Voltage |
590x488x1060mm | AC220V/AC110V |
Fireproof protection net |
425*335*25mm *1 |
Primarry filter |
450*380*100mm *1 |
PP High-Efficiency filter |
450*380*100mm *1 |
Glass fiber filter |
450*380*100mm *1 |
Activated carbon filter |
450*380*50mm*2 |
Cartridges are placed according to the standardconfiguration.
Note: Do not place the filter layer in a confusing position, but followthe direction of the arrow on the filter layer! Do not touch the inner faninlet with your hands!
Applied for controlling dust, smoke, and harmful particles generated by soldering, laser work, and dust production.
Soldering
During the soldering process, a lot of fumes are generated. The particles in the smoke and harmful gases will cause great harm to the operator and the environment.
Laser
Suitable for laser marking machines. The smoke produced by laser includes inhalable powder, methanol methyl acrylate, ethyl phenyl acrylate copolymer and other volatile matter that is pungent odor.
For specific applicable machines, please consult customer service.
Dust Powder
In many industries. dust and powder substances are involved.The production of these substances will cause inconvenience and serious impacts
Our products are suitable for various machines and industries, including laser marking machines, and can effectively remove inhalable powder, methanol methyl acrylate, ethyl phenyl acrylate copolymer, and other volatile matter.
For more information on our products and how they can be applied to your specific machines and industries, please consult our customer service team. With our solutions, you can ensure a safer and healthier working environment for both operators and the environment.
