MCWlaser Smoke Purifier XL-500 Filter Fume Extraction System
PP : PP High-Efficiency Filter
T : Activated carbon filter

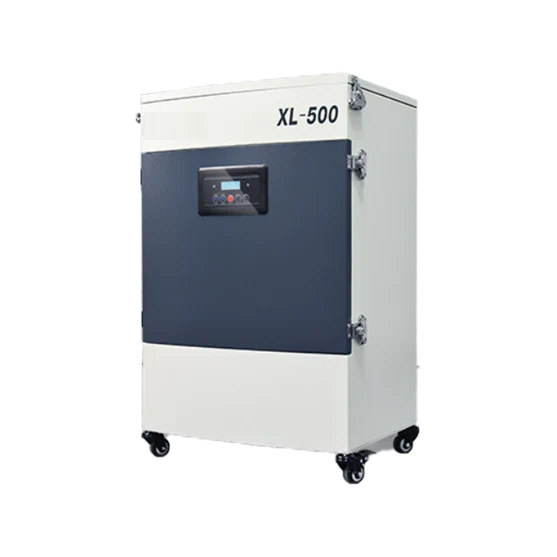

The Smoke Purifier XL-500 is an advanced and powerful air purification system specifically engineered to tackle smoke and airborne pollutants. This device is designed to effectively remove and neutralize smoke particles, fumes, and harmful gases that are commonly found in industrial settings.
The XL-500 model offers a formidable air-cleaning capacity, making it ideal for factories, manufacturing plants, workshops, and large-scale industrial facilities. Its 5 Layers filtration system, including HEPA and activated carbon filters, ensures thorough purification and enhanced air quality by capturing and eliminating a wide range of pollutants.
Modle | Certification |
XL-500 | CE |
Power | Warranty |
450W | 1 Year |
Efficiency | Filter |
99.97% | 5 Layers |
No-load speed(r/min) | Flow Rate(m³/h) |
5500 | 700 |
Load wind speed(m/s) | Negative pressure(Pa) |
31 | 3000 |
Weight(kg) | Noise(db) |
60 | <60 |
Dimensions(L*W*H) | Voltage |
550*440*885 | AC220V/AC110V |
Fireproof protection net |
425*335*25mm *1 |
Primarry filter |
450*380*100mm *1 |
PP High-Efficiency filter |
450*380*100mm *1 |
Activated carbon filter |
450x380x50mm*2 |

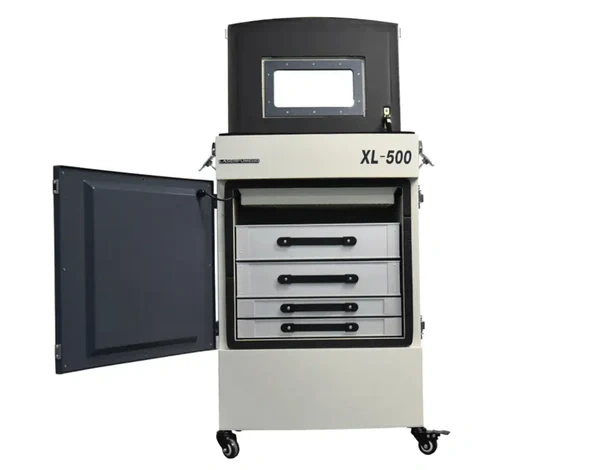

Cartridges are placed according to the standardconfiguration.
Note: Do not place the filter layer in a confusing position, but followthe direction of the arrow on the filter layer! Do not touch the inner faninlet with your hands!
Applied for controlling dust, smoke, and harmful particles generated by soldering, laser work, and dust production.
Soldering
During the soldering process, a lot of fumes are generated. The particles in the smoke and harmful gases will cause great harm to the operator and the environment.
Laser
Suitable for laser marking machines. The smoke produced by laser includes inhalable powder, methanol methyl acrylate, ethyl phenyl acrylate copolymer and other volatile matter that is pungent odor.
For specific applicable machines, please consult customer service.
Dust Powder
In many industries. dust and powder substances are involved.The production of these substances will cause inconvenience and serious impacts
Our products are suitable for various machines and industries, including laser marking machines, and can effectively remove inhalable powder, methanol methyl acrylate, ethyl phenyl acrylate copolymer, and other volatile matter.
For more information on our products and how they can be applied to your specific machines and industries, please consult our customer service team. With our solutions, you can ensure a safer and healthier working environment for both operators and the environment.
